Same model may have multiple batches, images only for reference.

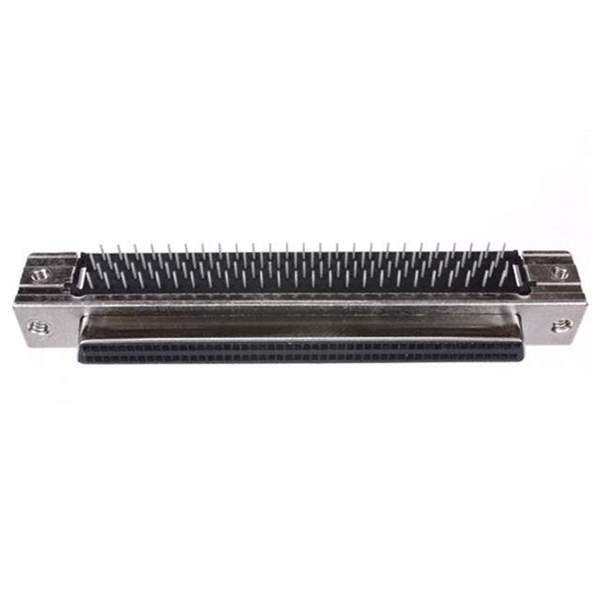

5787169-9 Real Image
Same model may have multiple batches, images only for reference.

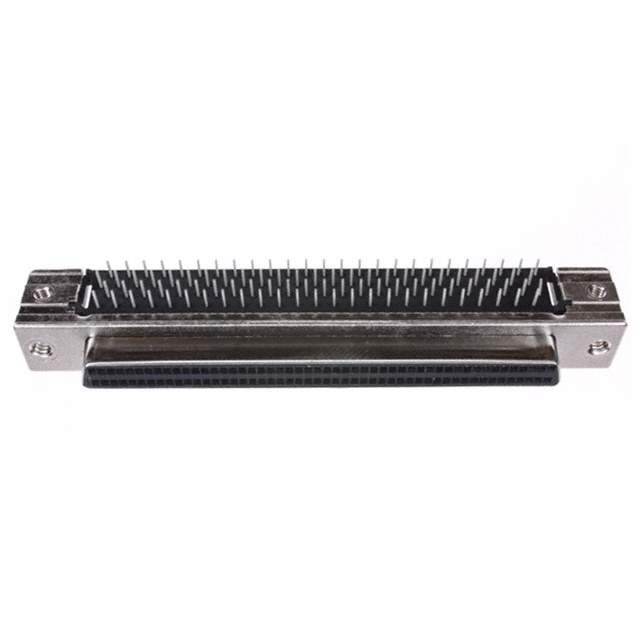

5787169-9

Part No 5787169-9
Manufacturer TE Connectivity
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-TYPE RCPT 100POS R/A SLDR / 100 Position D-Type Receptacle, Female Sockets Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors>D-Sub Connector Assemblies
Manufacturer TE Connectivity AMP Connectors
Packaging Tube
Connector Style D-Type
Connector Type Receptacle, Female Sockets
Number of Positions 100
Number of Rows 2
Mounting Board Edge, Through Hole, Right Angle
Shell Size, Connector Layout 0.050 Pitch x 0.100 Row to Row
Contact Type Signal
Flange Feature Housing/Shell (4-40)
Termination Solder
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1A
Backset Spacing 0.146" (3.71mm)
Features Shielded
Voltage Rating 30V
Color Black
Dielectric Material Thermoplastic
Contact Material Phosphor Bronze
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 5787169
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number A31809,57871699,Q8027934S
Standard Package 6
Win Source Part Number 1333181-5787169-9
Ultra Librarian 3D Model Ultra Librarian 5787169-9 CAD Model

Description

The 1333181-5787169-9 is a D-Sub Connector Assembly manufactured by TE Connectivity AMP Connectors.

  • Shielded: Yes
  • Number of Positions: 100
  • Number of Rows: 2
  • Connector Type: Receptacle Female Socket
  • Contact Finish: Gold
  • Current Rating: 1A
  • Operating Temperature: -55°C to 105°C
  • Voltage Rating: 30V
  • ROHS3 Compliant: Yes
