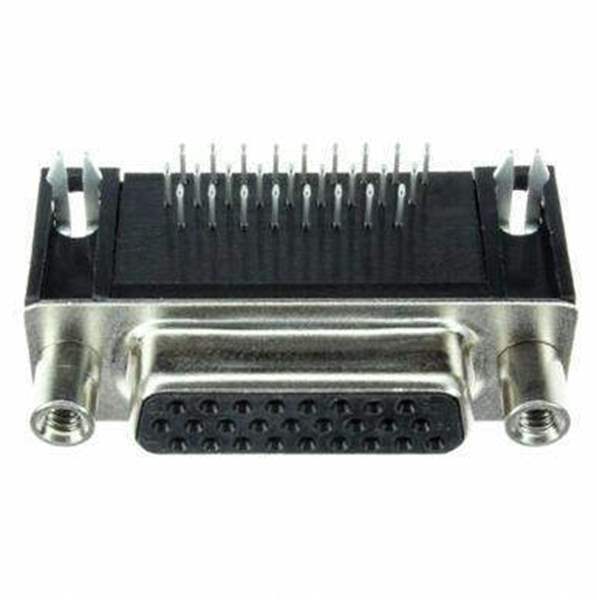

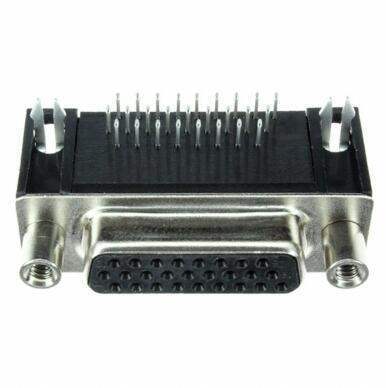

5748481-6 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

5748481-6

Part No 5748481-6
Manufacturer TE Connectivity
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB HD RCPT 26P R/A SLDR
Datasheet
5748481-6 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects D-Sub, D-Shaped Connectors D-Sub Connector Assemblies
Package Tray
Product Status Obsolete
Connector Type Receptacle, Female Sockets
Shell Size, Connector Layout 2 (DA, A) High Density
Flange Feature Mating Side, Female Screwlock (4-40)
Shell Material, Finish Steel, Nickel Plated
Contact Finish Thickness 30.0µin (0.76µm)
Material Flammability Rating UL94 V-0
Features Board Lock
Win Source Part Number WS1209551-5748481-6
Ultra Librarian 3D Model Ultra Librarian 5748481-6 CAD Model

Description

26 Position D-Sub, High Density Receptacle, Female Sockets Connector
