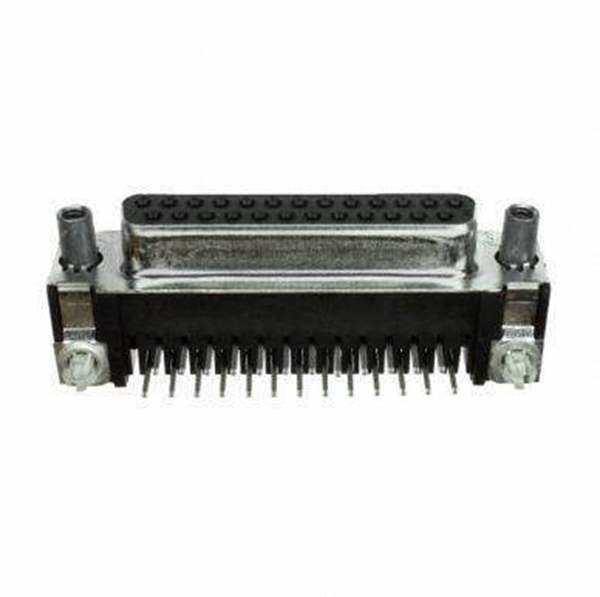

5747846-5 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

5747846-5

Part No 5747846-5
Manufacturer TE Connectivity
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB RCPT 25POS R/A SLDR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects D-Sub, D-Shaped Connectors D-Sub Connector Assemblies
Package Tray
Product Status Active
Connector Type Receptacle, Female Sockets
Flange Feature Mating Side, Female Screwlock (4-40)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness Flash
Backset Spacing 0.318" (8.08mm)
Win Source Part Number WS1209531-5747846-5
Ultra Librarian 3D Model Ultra Librarian 5747846-5 CAD Model

Description

25 Position D-Sub Receptacle, Female Sockets Connector
