5747461-3 TE Connectivity
Same model may have multiple batches, images only for reference.

5747461-3

Part No 5747461-3
Manufacturer TE Connectivity
Catalog D-Sub, D-Shaped Connectors - Assemblies

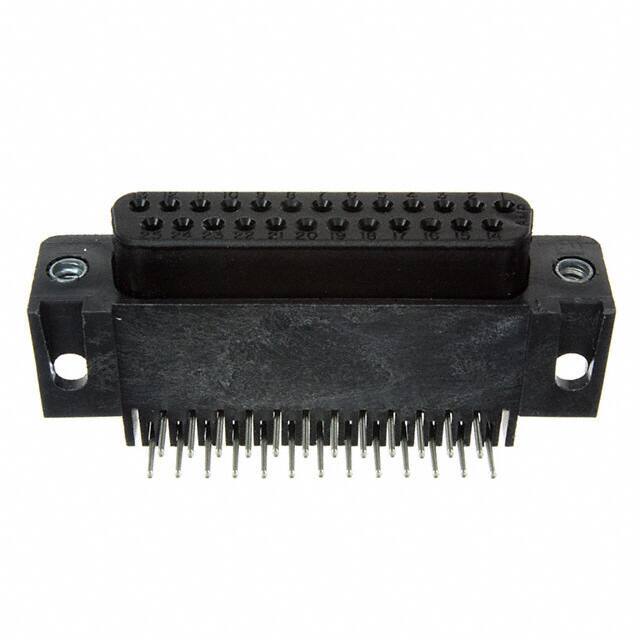

Description CONN D-SUB RCPT 25POS R/A SLDR / 25 Position D-Sub Receptacle, Female Sockets Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HD-20
Package Tray
Product Status Active
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 25
Number of Rows 2
Mounting Type Through Hole, Right Angle
Shell Size, Connector Layout 3 (DB, B)
Contact Type Signal
Flange Feature Housing/Shell (4-40)
Termination Solder
Shell Material, Finish -
Contact Finish Gold
Contact Finish Thickness Flash
Ingress Protection -
Material Flammability Rating UL94 V-0
Current Rating (Amps) 6A
Backset Spacing 0.590" (14.99mm)
Features -
Voltage Rating 125V
Color Black
Contact Form -
Dielectric Material -
Wire Gauge -
Contact Material Phosphor Bronze
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 5747461
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1365158-5747461-3
Ultra Librarian 3D Model Ultra Librarian 5747461-3 CAD Model

Description

The TE Connectivity AMP Connectors AMPLIMITE HD-20 series offers D-Sub connector assemblies for various applications.

  • Base Product Number: 5747461
  • Connector Type: Receptacle Assembly
  • Positions: 25
  • Rows: 2
  • Mounting: Through-Hole, Right-Angle
  • Color: Black
  • Product Status: Active
  • ECCN: EAR99
  • HTSUS Code: 8536.69.4040
  • Voltage: 125V
  • Current: 6A
