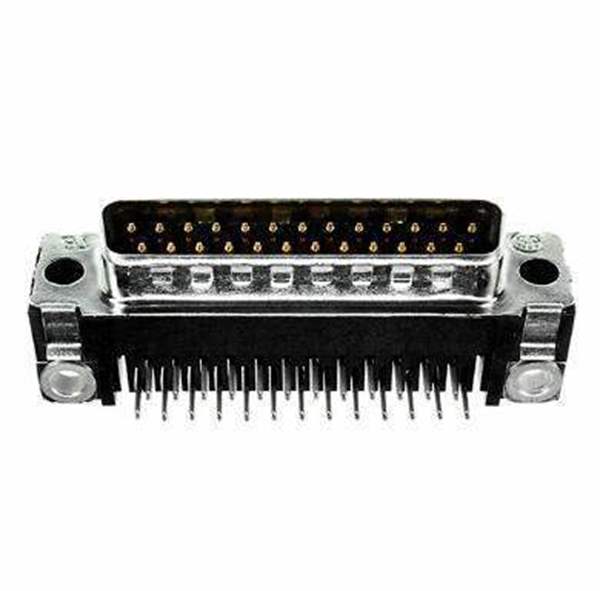

5747238-2TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

5747238-2

Part No 5747238-2
Manufacturer TE Connectivity
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB PLUG 25POS R/A SLDR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects D-Sub, D-Shaped Connectors D-Sub Connector Assemblies
Package Tray
Product Status Active
Connector Type Plug, Male Pins
Shell Size, Connector Layout 3 (DB, B)
Flange Feature Housing/Shell (Unthreaded)
Shell Material, Finish Steel, Tin Plated
Backset Spacing 0.318" (8.08mm)
Features Ground Strap, Grounding Indents
Voltage Rating 125V
Win Source Part Number WS1209532-5747238-2
Ultra Librarian 3D Model Ultra Librarian 5747238-2 CAD Model

Description

25 Position D-Sub Plug, Male Pins Connector
