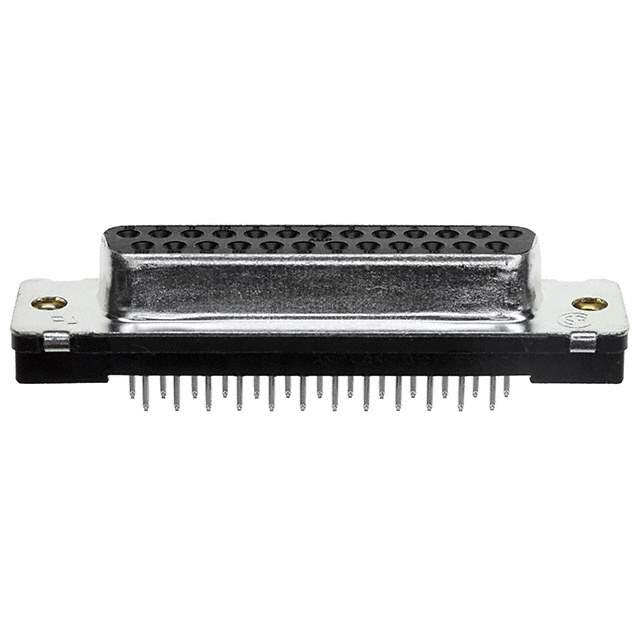

5745967-8 Real Image
Same model may have multiple batches, images only for reference.

5745967-8

Part No 5745967-8
Manufacturer TE Connectivity
Catalog D - SUB, D - SHAPED connectors
Description HD-20 Straight Posted Connectors | CONN D-SUB RCPT 25POS VERT SLDR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Tube
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 25
Number of Rows 2
Shell Size, Connector Layout 3 (DB, B)
Contact Type Signal
Mounting Style Through Hole
Flange Feature Housing/Shell (4-40)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness 30.0μin (0.76μm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 6A
Temperature Range - Operating -55°C ~ 105°C
Voltage Rating 125V
Color Black
Dielectric Material Polyester
Contact Material Phosphor Bronze
Manufacturer Pack Quantity 10
MSL Level 1 (Unlimited)
Win Source Part Number 729096-5745967-8
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 5745967-8 CAD Model

Description

The TE Connectivity AMP Connectors 729096-5745967-8 is a 25-position female socket receptacle connector. It is a D-sub connector with two rows and a black-colored housing. The connector has a voltage rating of 125V and is made of UL94 V-0 rated polyester material.

  • Connector Type: D-sub
  • Positions: 25
  • Rows: 2
  • Voltage Rating: 125V
  • Housing Material: Black Colored Polyester
  • Contact Finish: Gold (30.0μin (0.76μm))
  • Contact Material: Phosphor Bronze
  • Termination: Solder
  • Shell Material: Steel, Tin Plated
  • Temperature Range: -55°C to 105°C
  • Packaging: Tube
  • Supply and Demand Status: Limited
