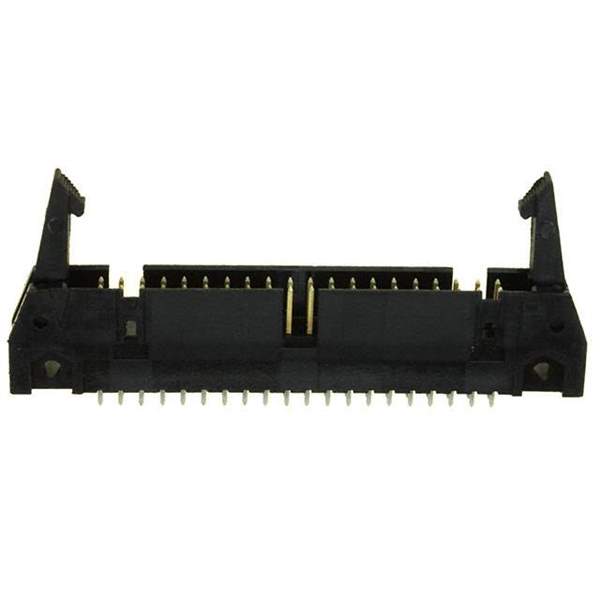

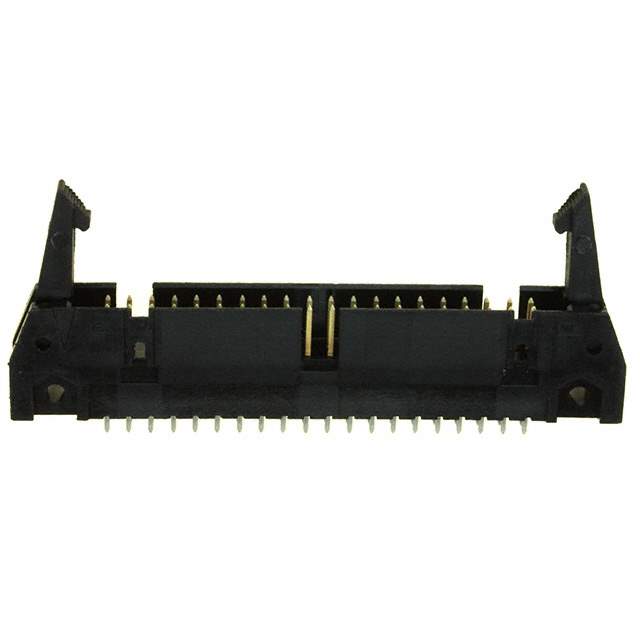

5499922-9 Real Image
Same model may have multiple batches, images only for reference.

5499922-9

Part No 5499922-9
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 40POS 2.54MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TE Connectivity AMP Connectors
Packaging Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 40
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style Through Hole
Termination Solder
Fastening Type Latch Lock/Eject Hooks, Long
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.110" (2.79mm)
Overall Contact Length 0.639" (16.23mm)
Insulation Height 0.549" (13.94mm)
Contact Shape Square
Contact Finish - Mating Gold or Gold-Palladium
Contact Finish Thickness - Mating 15.0μin (0.38μm)
Contact Finish - Post Tin
Features Keying Slot, Mounting Flange
Temperature Range - Operating -65°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 1A
Voltage Rating 250VAC
Contact Finish Thickness - Post 100.0μin (2.54μm)
Manufacturer Pack Quantity 24
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 813850-5499922-9
Ultra Librarian 3D Model Ultra Librarian 5499922-9 CAD Model

Description

The TE Connectivity AMP Connectors electronic component is a header type connector with 40 positions.

  • Mounting Style: Through-Hole
  • Keying: Slot and Mounting Flange
  • Connector Type: Male Pin
  • Termination: Solder
  • Locking: Latch Lock/Eject Hooks, Long Fastening Type
  • Voltage Rating: 250VAC
  • Material Flammability Rating: UL94 V-0
  • Shrouding: Shrouded - 4 wall
  • Pitch: 0.100" (2.54mm)
  • Contact Finish - Mating: Gold or Gold-Palladium
  • Contact Finish Thickness - Mating: 15.0μin (0.38μm)
  • Contact Finish - Post: Tin
  • Contact Finish Thickness - Post: 100.0μin (2.54μm)
  • Insulation Color: Black
  • Supply and Demand Status: Limited
  • Manufacturer: TE Connectivity AMP Connectors
  • Win Source Part Number: 813850-5499922-9
