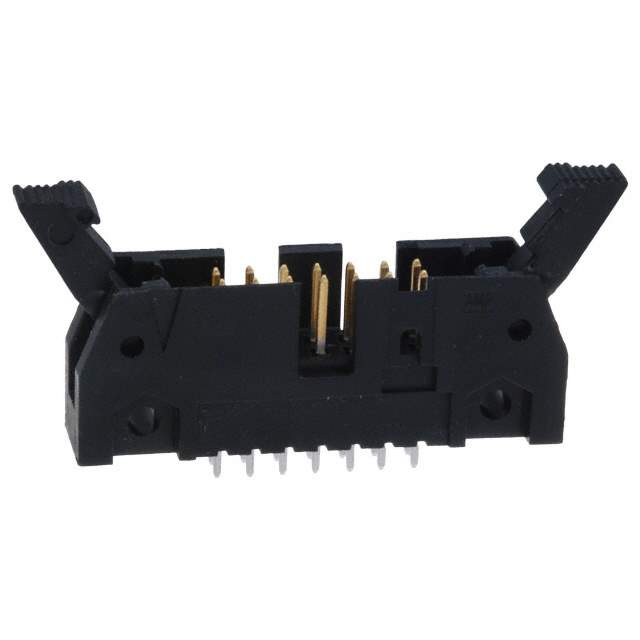

5499910-2 Real Image
Same model may have multiple batches, images only for reference.

5499910-2

Part No 5499910-2
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 14POS 2.54MM  /  Connector Header Through Hole 14 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series AMP-Latch
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 14
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Latch Lock/Eject Hooks, Short
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.110" (2.79mm)
Overall Contact Length 0.639" (16.23mm)
Insulation Height 0.549" (13.94mm)
Contact Shape Square
Contact Finish - Mating Gold or Gold-Palladium
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Features Keying Slot, Mounting Flange
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 1A
Contact Finish Thickness - Post 100.0µin (2.54µm)
Base Product Number 5499910
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names AHE14H,-5499910-2-SI,54999102
Standard Package 64
Win Source Part Number 1027678-5499910-2
Ultra Librarian 3D Model Ultra Librarian 5499910-2 CAD Model

Description

The AMP-Latch male pin header connector is a reliable and high-quality electronic component.

  • Type: Rectangular Connector
  • Positions: 14
  • Features: Keying Slot and Mounting Flange
  • Loading: All Positions
  • Rows: Two
  • Termination: Solder
  • Fastening Type: Latch Lock/Eject Hooks, Short
  • Shrouded: Four Walls
  • Pitch: 0.100" (2.54mm)
  • Contact Finish: Gold or Gold-Palladium
  • Contact Finish Thickness: 15.0µin (0.38µm)
  • Insulation Color: Black
  • Mounting Type: Through Hole
  • Applications: industrial and consumer electronics
