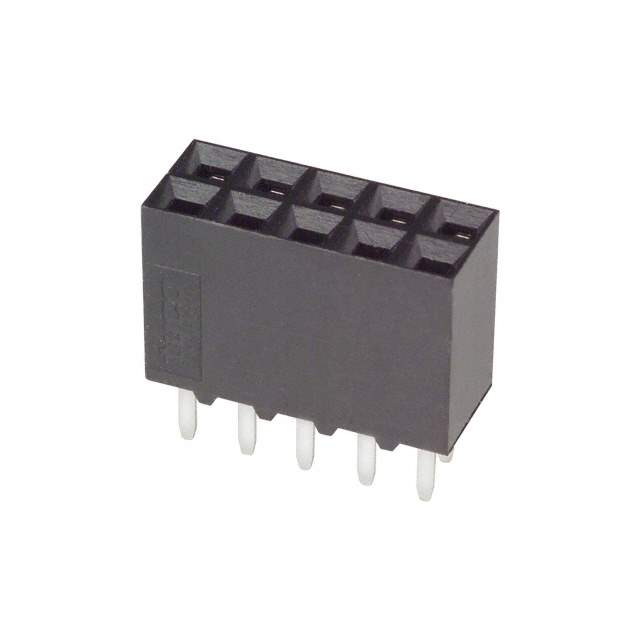

534206-5 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Receptacles, Female Sockets
Manufacturer TE Connectivity AMP Connectors
Packaging Tube
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 10
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Insulation Color Black
Insulation Height 0.320" (8.13mm)
Contact Length - Post 0.115" (2.92mm)
Temperature Range - Operating -65°C ~ 125°C
Contact Finish - Post Tin-Lead
Current Rating (Amps) 2A
Insulation Material Polyester, Glass Filled
Contact Shape Square
Contact Material Phosphor Bronze
Contact Finish Thickness - Post 150.0µin (3.81µm)
Base Product Number 534206
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 534206-5-ND,5342065,A26455
Standard Package 45
Win Source Part Number 1332137-534206-5
Ultra Librarian 3D Model Ultra Librarian 534206-5 CAD Model

Description

TE Connectivity AMP Connectors 534206-5 Headers, Receptacles, Female Sockets are high-quality connectors that are designed to provide excellent performance and reliability.

  • Component: 1332137-534206-5
  • Type: receptacle
  • Positions: 10
  • Application: board to board or cable
  • Contact Finish Mating: gold
  • Temperature Range: -65°C to 125°C
  • Packaging: tube
  • Standard Package: 45
  • ECCN: EAR99
  • REACH Affected: Yes
