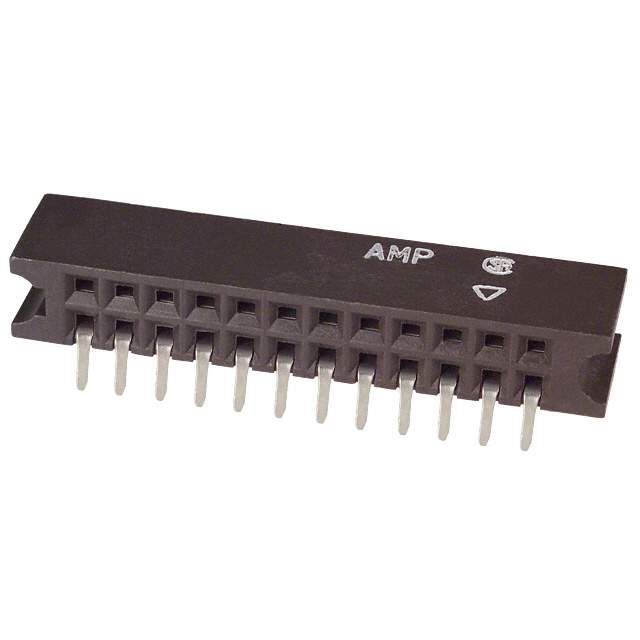

532955-4

Name: 532955-4
Brand: TE Connectivity
SKU: 1332070
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	532955-4
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN RCPT 24POS 0.1 GOLD PCB R/A / 24 Position Receptacle Connector 0.100" (2.54mm) Through Hole, Right Angle Gold
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Receptacles, Female Sockets
Manufacturer	TE Connectivity AMP Connectors
Packaging	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	24
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting	Through Hole, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	15.0µin (0.38µm)
Insulation Color	Black
Insulation Height	0.238" (6.05mm)
Contact Length - Post	0.115" (2.92mm)
Contact Finish - Post	Tin
Features	Guide Pin Ears
Contact Shape	Square
Contact Material	Phosphor Bronze
Contact Finish Thickness - Post	50.0µin (1.27µm)
Base Product Number	532955
RoHS Status	RoHS non-compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	5329554,A26348,2266-532955-4,532955-4-ND
Standard Package	65
Win Source Part Number	1332070-532955-4
Ultra Librarian 3D Model	Ultra Librarian 532955-4 CAD Model

Description

This TE Connectivity AMP Connectors receptacle connector is designed for board-to-board applications.

Positions: 24
Positions Loaded: All
Rows: Two
Features: Guide Pin Ears
Fastening Type: Push-Pull
Contact Type: Female Socket
Contact Material: Phosphor Bronze
Pitch: 0.100" (2.54mm)
Row Spacing: 0.100" (2.54mm)
Mating Contact Finish: Gold with a thickness of 15.0µin (0.38µm)
Post Contact Finish: Tin with a thickness of 50.0µin (1.27µm)
RoHS Compliant: No
Standard Package: 65
Mounting: Through Hole, Right Angle
