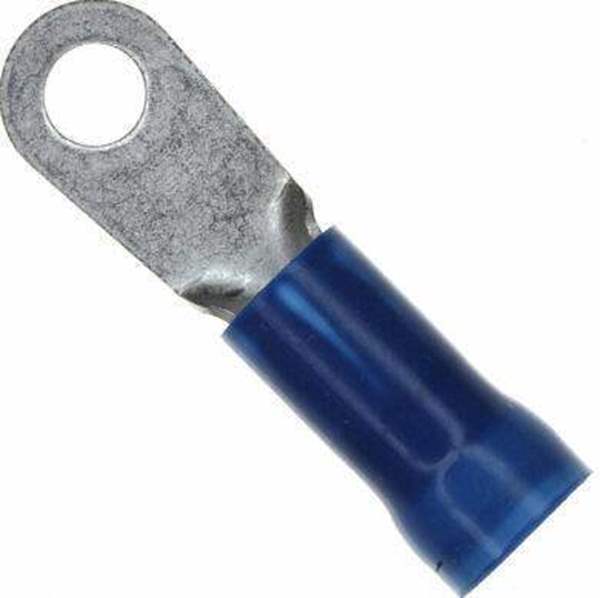

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects Terminals Ring Connectors
Package Tape & Reel (TR)
Product Status Active
Terminal Type Circular
Stud/Tab Size 1/4 Stud
Thickness 0.045" (1.14mm)
Length - Overall 1.869" (47.47mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Win Source Part Number WS1209130-52042-9
Ultra Librarian 3D Model Ultra Librarian 52042-9 CAD Model

Description

Closed Ring Tongue Terminal, 6 AWG, 1/4 / M6 Stud Size, 6.73 mm [.265 in] Stud Diameter, Closed Barrel, Straight, Tin, PLASTI-GRIP
