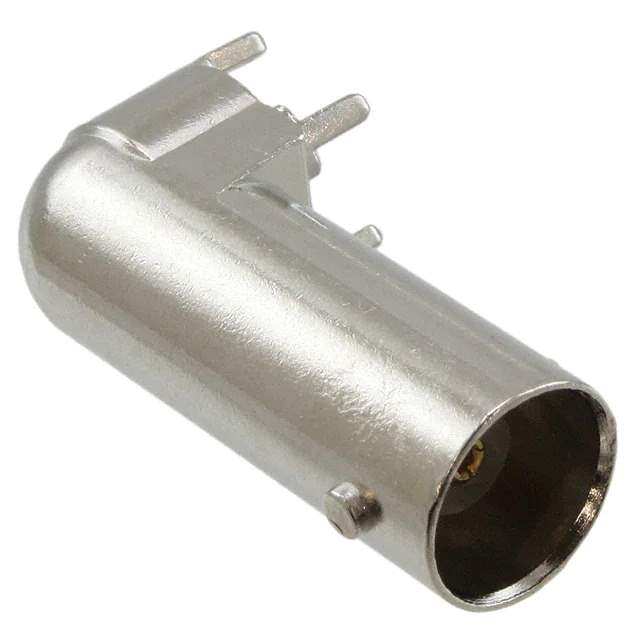

5-1634513-1 Real Image
Same model may have multiple batches, images only for reference.

5-1634513-1

Part No 5-1634513-1
Manufacturer TE Connectivity
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN BNC JACK R/A 50 OHM PCB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr TE Connectivity
Series ZDC, Greenpar
Package Bulk
Product Status Obsolete
Connector Style BNC
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Type Through Hole, Right Angle
Fastening Type Bayonet Lock
Frequency - Max 2 GHz
Number of Ports 1
Housing Color Silver
Center Contact Material Phosphor Bronze
Body Material Zinc Alloy
Body Finish Nickel
Center Contact Plating Gold
Dielectric Material Polymethylpentene (PMP)
Temperature Range - Operating -55°C ~ 85°C
Voltage Rating 500 V
Mating Cycles 500
Base Product Number 1634513
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4010
Win Source Part Number 847950-5-1634513-1
Ultra Librarian 3D Model Ultra Librarian 5-1634513-1 CAD Model

Description

The ZDC and Greenpar series BNC coaxial connector assemblies are ideal for various applications in the field of connectors and interconnects from TE Connectivity.

  • Connector Type: Jack female socket
  • Fastening Type: Bayonet lock
  • Body Material: Zinc alloy
  • Voltage Rating: 500 V
  • Maximum Frequency: 2 GHz
  • Housing Color: Silver
  • Impedance: 50 Ohm
  • Contact Termination: Solder
  • Mounting Type: Through-hole and right-angle
  • Operating Temperature: -55°C to 85°C
