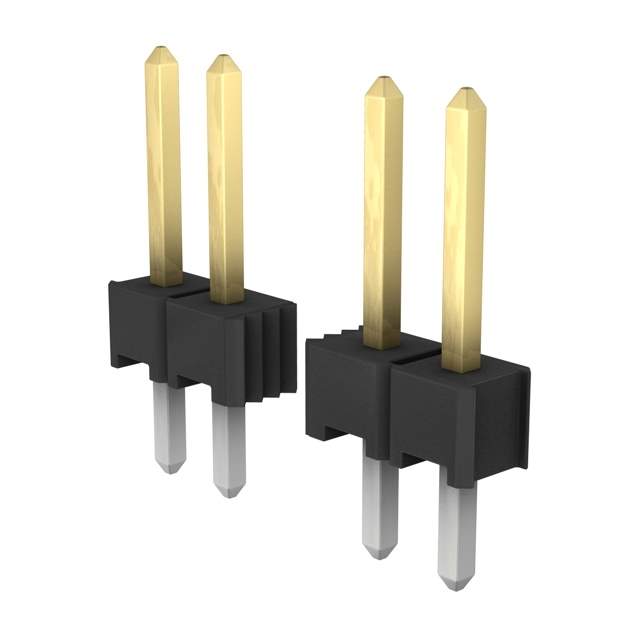

Same model may have multiple batches, images only for reference.

5-104878-8

Name: 5-104878-8
Brand: TE Connectivity
SKU: 802723
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	5-104878-8
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 7POS 2.54MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	TE Connectivity AMP Connectors
Packaging	Bulk
Connector Type	Header, Breakaway
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	7
Number of Rows	1
Number of Positions Loaded	6
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Style	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.230" (5.84mm)
Contact Length - Post	0.120" (3.05mm)
Overall Contact Length	0.440" (11.18mm)
Insulation Height	0.090" (2.29mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	15.0μin (0.38μm)
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Thermoplastic
Insulation Color	Black
Contact Finish Thickness - Post	100.0μin (2.54μm)
Manufacturer Pack Quantity	8,000
MSL Level	1 (Unlimited)
Popularity	High
Supply and Demand Status	Balance
Win Source Part Number	802723-5-104878-8
Ultra Librarian 3D Model	Ultra Librarian 5-104878-8 CAD Model

Description

The TE Connectivity AMP Connectors header, breakaway connector is a male pin connector from TE Connectivity AMP Connectors.

Insulation Material: Thermoplastic
Pitch - Mating: 0.100 inches (2.54mm)
Contact Finish - Mating: Gold
Contact Finish - Mating Thickness: 15.0μin (0.38μm)
Contact Finish - Post: Tin
Contact Finish - Post Thickness: 100.0μin (2.54μm)
Shrouding: Unshrouded
Contact Shape: Square
Overall Contact Length: 0.440 inches (11.18mm)
Contact Length - Mating: 0.230 inches (5.84mm)
Contact Length - Post: 0.120 inches (3.05mm)
Insulation Height: 0.090 inches (2.29mm)
Style: Board to Board or Cable
Fastening Type: Push-Pull
