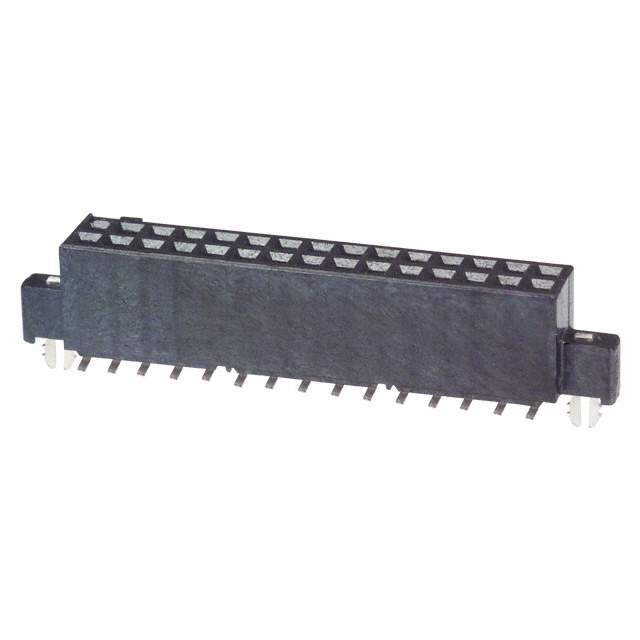

5-104652-3 Real Image
Same model may have multiple batches, images only for reference.

5-104652-3

Part No 5-104652-3
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN RCPT 30POS 0.05 GOLD SMD / 30 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Receptacles, Female Sockets
Manufacturer TE Connectivity AMP Connectors
Packaging Tube
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 30
Number of Positions Loaded All
Pitch - Mating 0.050" (1.27mm)
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Mounting Surface Mount
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Insulation Color Black
Insulation Height 0.187" (4.75mm)
Temperature Range - Operating -65°C ~ 105°C
Contact Finish - Post Tin
Mated Stacking Heights 6.35mm, 8.13mm, 9.91mm
Features Board Lock
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Copper Alloy
Contact Finish Thickness - Post 150.0µin (3.81µm)
Base Product Number 104652
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number -5-104652-3-CSI,A32568,-5-104652-3-SI,51046523
Standard Package 22
Win Source Part Number 1332629-5-104652-3
Ultra Librarian 3D Model Ultra Librarian 5-104652-3 CAD Model

Description

The TE Connectivity AMP Connectors Rectangular Connector is a high-quality electronic component with a Win Source Part Number of 1332629-5-104652-3.

  • Packaging: Tube
  • Positions: 30
  • Feature: Board Lock
  • Connector Type: Receptacle
  • Contact Type: Female Socket
  • Contacts Loaded: All
  • Rows: Two
  • Termination Type: Solder
  • Fastening Type: Push-Pull
  • Contact Material: Copper Alloy
  • Category: Headers, Receptacles, Female Sockets
  • Operating Temperature Range: -65°C ~ 105°C
