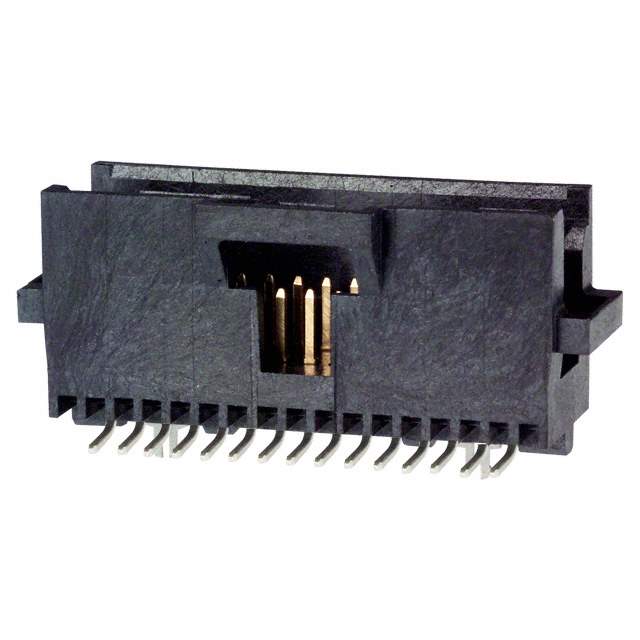

5-104549-5

Part No 5-104549-5
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER 30POS .050" STR GOLD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Tube/Rail
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.050" (1.27mm)
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Number of Positions 30
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting SMD (SMT)
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating 0.125" (3.18mm)
Insulation Height 0.435" (11.05mm)
Contact Shape Circular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30μin (0.76μm)
Contact Finish - Post Tin
Insulation Material Polyphthalamide (PPA)
Features Board Lock
Temperature Range - Operating -65°C to 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Voltage Rating 30VAC
Contact Finish Thickness - Post 150μin (3.81μm)
Applications Automotive, General Purpose, Medical, Telecommunications
Win Source Part Number 005177-5-104549-5
Popularity Medium
Supply and Demand Status Limited
Quantity per package 20
Ultra Librarian 3D Model Ultra Librarian 5-104549-5 CAD Model

Description

Product Overview

The 5-104549-5 is a robust component tailored for high-end electronics applications. Its superior build quality ensures extended service life and reliability.

Applications and Projects

  • Aerospace technology
  • Wireless communication
  • Data acquisition systems
  • Renewable energy solutions

Features and Benefits

  • Exceptional Reliability: Guarantees dependable operation.
  • High Precision: Suitable for applications requiring pinpoint accuracy.
  • Environmentally Resistant: Can operate under varied environmental conditions.

Additional Details

The 5-104549-5 is ideal for mission-critical applications where failure is not an option.
