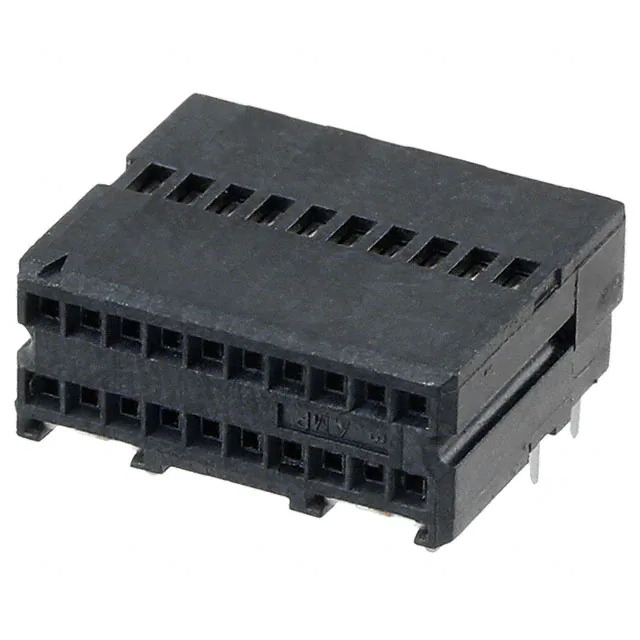

Same model may have multiple batches, images only for reference.

5-103911-2

Name: 5-103911-2
Brand: TE Connectivity
SKU: 1363509
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	5-103911-2
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN RCPT 20P 0.05 GOLD PCB R/A / 20 Position Receptacle Connector 0.050" (1.27mm) Through Hole, Right Angle Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	TE Connectivity AMP Connectors
Series	AMPMODU System 50
Package	Tube
Product Status	Active
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	20
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Insulation Color	Black
Insulation Height	0.217" (5.51mm)
Contact Length - Post	0.100" (2.54mm)
Temperature Range - Operating	-65°C ~ 105°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Mated Stacking Heights	-
Ingress Protection	-
Features	Board Guide
Current Rating (Amps)	1A
Voltage Rating	30VAC
Applications	-
Insulation Material	Thermoplastic, Glass Filled
Contact Shape	Square
Contact Material	Copper Alloy
Contact Finish Thickness - Post	150.0µin (3.81µm)
Base Product Number	103911
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1363509-5-103911-2
Ultra Librarian 3D Model	Ultra Librarian 5-103911-2 CAD Model

Alternative Products

Description

The TE Connectivity AMP Connectors AMPMODU System 50 Receptacle is a rectangular connector contact designed for board-to-board connections.

Termination: Solder
Current Rating: 1A
Contact Finish Mating: Gold
Contact Finish Thickness: 30.0μin (0.76μm)
Contact Finish Post: Tin
Series: AMPMODU System 50
Package: Tube
Base Product Number: 103911
Product Status: Active
Number of Positions: 20
Number of Rows: 2
Pitch: 0.050" (1.27mm)
Row Spacing: 0.100" (2.54mm)
