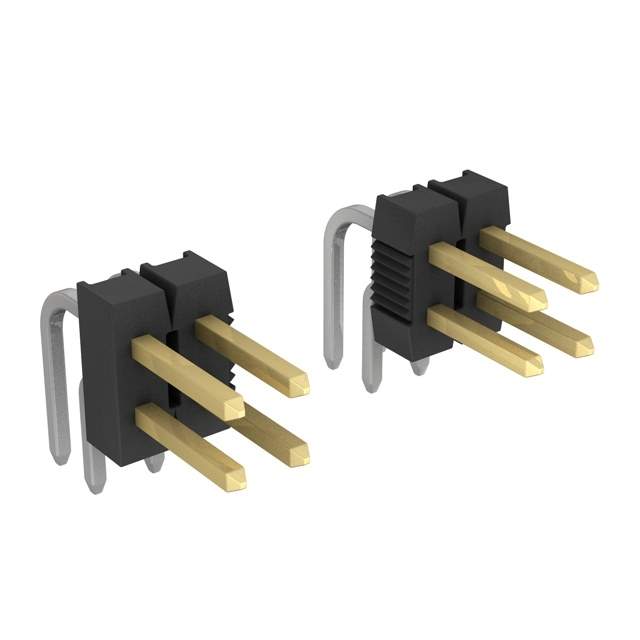

5-102975-4 Real Image
Same model may have multiple batches, images only for reference.

5-102975-4

Part No 5-102975-4
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADR BRKWY .100 8POS R/A
Datasheet
5-102975-4 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Series AMPMODU Mod II
Packaging Bulk
Connector Type Header, Breakaway
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Style Board to Board or Cable
Shrouding Unshrouded
Number of Positions 8
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.318" (8.08mm)
Contact Length - Post 0.110" (2.79mm)
Insulation Height 0.238" (6.05mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15μin (0.38μm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic
Operating Temperature Range -65°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating 3A
Contact Finish Thickness - Post 100μin (2.54μm)
Win Source Part Number 763881-5-102975-4
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 5-102975-4 CAD Model

Description

The TE Connectivity AMP Connectors 763881-5-102975-4 is a header, breakaway connector with 8 positions and 2 rows. The manufacturer of this product is TE Connectivity AMP Connectors.

  • Positions: 8
  • Rows: 2
  • Pitch: 0.100 inches (2.54mm)
  • Connection: Board-to-board or cable
  • Material: Copper alloy
  • Mating Finish: Gold
  • Post Finish: Tin
  • Current Rating: 3A
  • Operating Temperature Range: -65°C to 105°C
  • Material Flammability: UL94 V-0
  • Fastening Type: Push-pull
  • Mounting: Through-hole, right angle
  • Insulation Material: Thermoplastic
  • Insulation Color: Black
