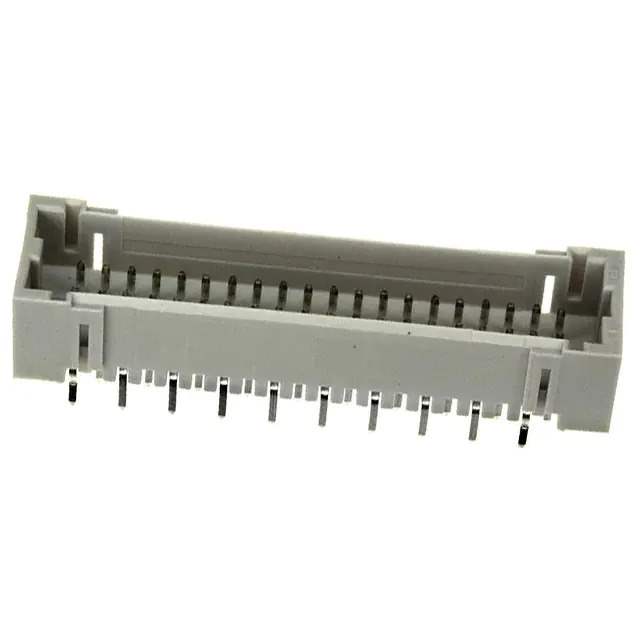

Same model may have multiple batches, images only for reference.

4-292208-0

Name: 4-292208-0
Brand: TE Connectivity
SKU: 856022
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	4-292208-0
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 40POS 1.5MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	TE Connectivity
Series	Mini CT
Package	Tray
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.059" (1.50mm)
Number of Positions	40
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Kinked Pin, Solder
Fastening Type	Detent Lock
Contact Length - Mating	0.114" (2.90mm)
Contact Length - Post	0.118" (3.00mm)
Insulation Height	0.291" (7.40mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA), Nylon, Glass Filled
Features	Board Guide
Temperature Range - Operating	-30°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Gray
Current Rating (Amps)	Varies by Wire Gauge
Voltage Rating	50VAC
Applications	General Purpose
Base Product Number	292208
Standard Package	400 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	856022-4-292208-0
Ultra Librarian 3D Model	Ultra Librarian 4-292208-0 CAD Model

Alternative Products

Description

The 856022-4-292208-0 is a 40-position male pin header from TE Connectivity's Mini CT series. 856022-4-292208-0 from TE Connectivity.

Series: Mini CT
Number of Positions: 40
Contact Gender: Male Pin
Board Guide: Yes
Fastening Type: Detent Lock
Connector Type: Header
Termination: Kinked Pin Soldering
Contact Material: Brass
Voltage Rating: 50VAC
Insulation Material: Polyamide (PA) and Nylon, Glass-Filled
Flammability Rating: UL94 V-0
Application: General Purpose
Standard Package: 400 pieces
Mating Contact Length: 0.114" (2.90mm)
Post Contact Length: 0.118" (3.00mm)
Temperature Range: -30°C to 105°C
