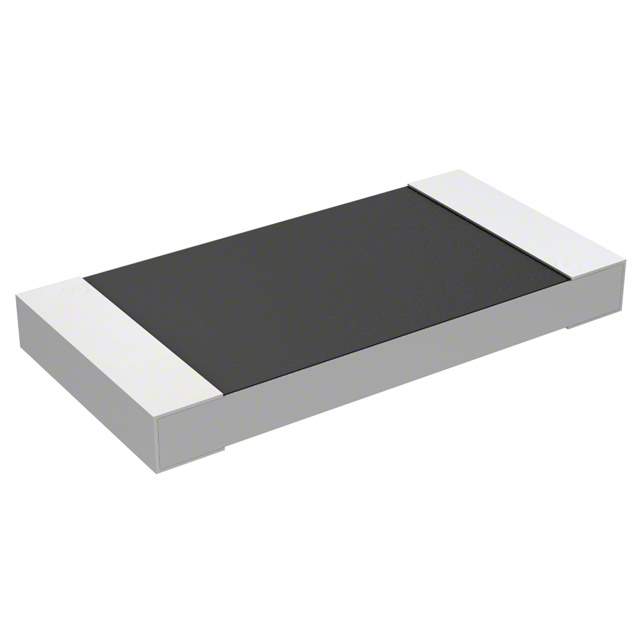

3521270RFT Real Image
Same model may have multiple batches, images only for reference.

3521270RFT

Part No 3521270RFT
Manufacturer TE Connectivity
Catalog Chip Resistor - Surface Mount
Description RES SMD 270 OHM 1% 2W 2512 / 270 Ohms ±1% 2W Chip Resistor 2512 (6432 Metric) Automotive AEC-Q200 Thick Film
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr TE Connectivity Passive Product
Series 3521, CGS
Package Tape & Reel
Resistance 270 Ohms
Tolerance ±1%
Power (Watts) 2W
Composition Thick Film
Features Automotive AEC-Q200
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 2512 (6432 Metric)
Ratings AEC-Q200
Dimension 0.248" L x 0.126" W (6.30mm x 3.20mm)
Height - Seated (Max) 0.026" (0.65mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names 3-2176070-5,A116018DKR,A116018TR,A116018CT
Standard Package 4,000
Win Source Part Number 1144284-3521270RFT
Ultra Librarian 3D Model Ultra Librarian 3521270RFT CAD Model

Description

The TE Connectivity Passive Product 3521270RFT is a thick film chip resistor with a resistance of 270 Ohms and ±1% tolerance.

  • Manufacturer: TE Connectivity Passive Product
  • Resistance: 270 Ohms
  • Tolerance: ±1%
  • Power Rating: 2W
  • Temperature Coefficient: ±100ppm/°C
  • AEC-Q200 Rated: Suitable for automotive applications
  • Package Size: 2512 (6432 Metric)
  • Packaging: Tape and Reel
  • Number of Terminations: 2
  • Maximum Seated Height: 0.026" (0.65mm)
  • Operating Temperature Range: -55°C to 155°C
  • Series: 3521, CGS
