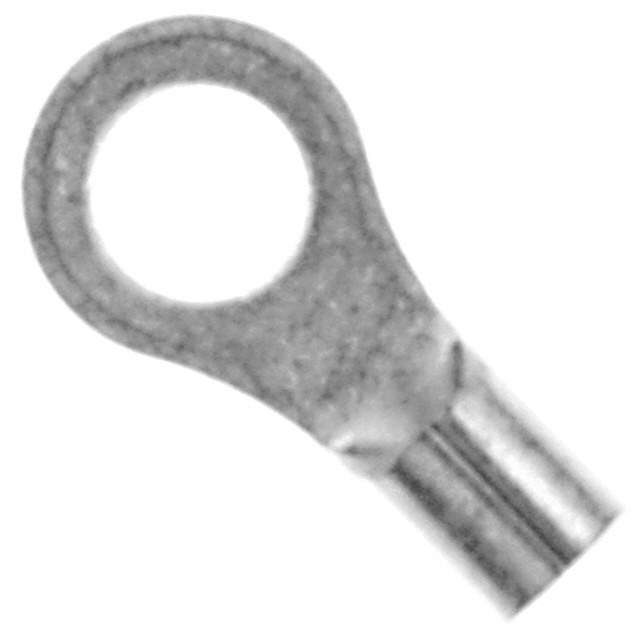

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Body Material Copper
Body Plating Tin
Color Red
Contact Material Copper
Contact Plating Tin
Depth 7.14 mm
Gender Female
Government Qualified No
Heavy Duty No
Inside Diameter 1.65 mm
Insulated Wire Support No
Insulation Non-Insulated
Lead Free Lead Free
Length 14.5796 mm
Material Copper
Material Thickness 790 µm
Mount Free Hanging
Number of Holes 1
Orientation Straight
Packaging Bulk
Plating Tin
Radiation Hardening No
REACH SVHC No SVHC
RoHS Compliant
Sealable No
Stud Diameter 4.34 mm
Stud Size M4
Termination Crimp
Thickness 787.4 µm
Tongue Thickness 790 µm
Width 7.14 mm
Wire Gauge (Max) 22 AWG
Wire Gauge (Min) 16 AWG
Win Source Part Number 1187258-31265
Categories Terminals
Manufacturer TE Connectivity
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 31265 CAD Model

Description

TE Connectivity's 1187258-31265 is a crimp terminal that has a length of 14.5796mm and a width of 7.14mm.

  • Length: 14.5796mm
  • Width: 7.14mm
  • Supply and Demand Status: Limited
  • Orientation: Straight
  • Stud Size: M4
