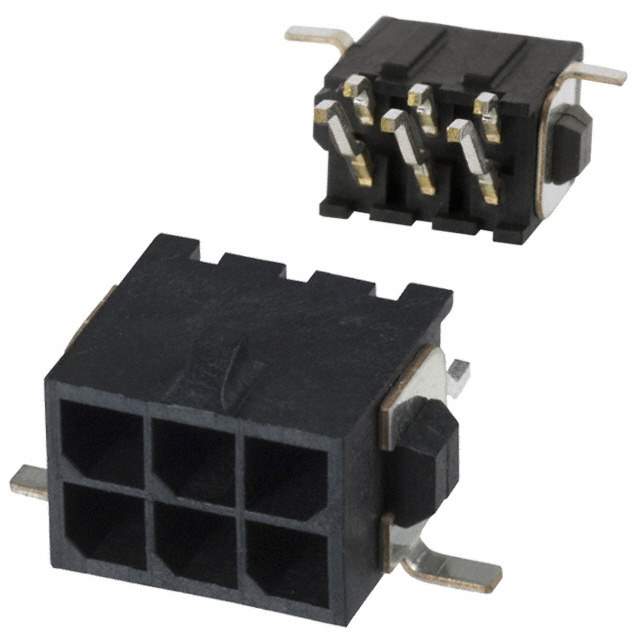

3-794629-6 Real Image
Same model may have multiple batches, images only for reference.

3-794629-6

Part No 3-794629-6
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 6POS 3MM / THIS DRAWING IS A CONTROLLED DOCUMENT.
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TE Connectivity AMP Connectors
Packaging Reel
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.118" (3.00mm)
Number of Positions 6
Number of Rows 2
Row Spacing - Mating 0.118" (3.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style Surface Mount, Right Angle
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.290" (7.37mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0μin (0.76μm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 250V
Contact Finish Thickness - Post 100.0μin (2.54μm)
Applications General Purpose
Manufacturer Pack Quantity 150
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 810218-3-794629-6
Ultra Librarian 3D Model Ultra Librarian 3-794629-6 CAD Model

Description

The TE Connectivity AMP Connectors 810218-3-794629-6 is a surface mount, right angle header connector with six male pin contacts.

  • Features: Solder Retention
  • Fastening Type: Locking Ramp
  • Contact Material: Brass
  • Contact Finish - Mating: Gold - 30.0μin (0.76μm)
  • Voltage Rating: 250V
  • Insulation Material: Nylon
  • Insulation Material Rating: UL94 V-0 rated polyamide (PA)
  • Pitch-Mating: 0.118" (3.00mm)
  • Contact Finish - Post: Tin - 100.0μin (2.54μm)
  • Shrouding: Shrouded - 4 Wall
  • Insulation Color: Black
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 150
  • MSL Level: 1 (unlimited)
  • Current Rating (Amps): Varies by wire gauge
