Same model may have multiple batches, images only for reference.

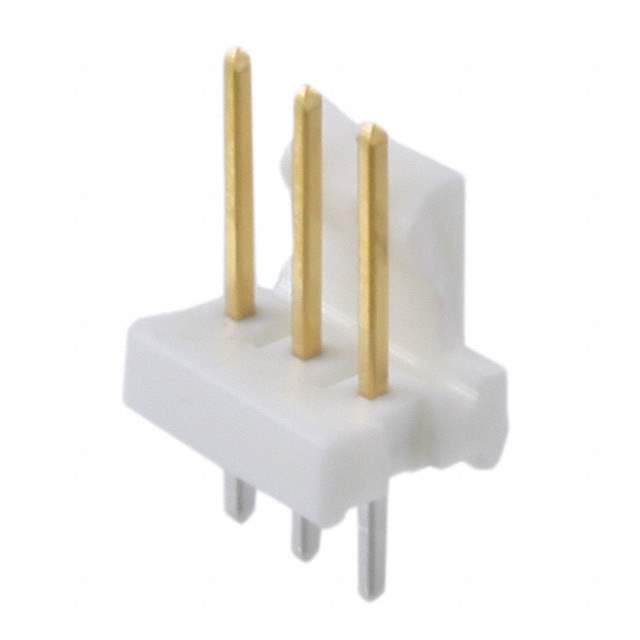

3-641126-3 Real Image
Same model may have multiple batches, images only for reference.

3-641126-3

Part No 3-641126-3
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 3POS 2.54MM / Connector Header Through Hole 3 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 3
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 1 Wall
Mounting Through Hole
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating 0.295" (7.49mm)
Contact Length - Post 0.140" (3.56mm)
Overall Contact Length 0.535" (13.59mm)
Insulation Height 0.305" (7.75mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 250VAC
Contact Finish Thickness - Post 150.0µin (3.81µm)
Applications General Purpose
Base Product Number 641126
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 2266-3-641126-3,3-641126-3-ND,36411263,A113511,-3-641126-3-SI
Standard Package 1
Win Source Part Number 1332340-3-641126-3
Ultra Librarian 3D Model Ultra Librarian 3-641126-3 CAD Model

Description

The TE Connectivity AMP Connectors 1332340-3-641126-3 is a 3-position header connector.

  • Application: Board-to-Cable/Wire
  • Mounting Type: Through Hole
  • Connector Type: Header
  • Contact Type: Male Pin
  • Positions: 3
  • Positions Loaded: All
  • Rows: 1
  • Termination: Solder
  • Fastening Type: Friction Lock
  • Contact Material: Copper Alloy
  • Voltage Rating: 250VAC
  • Insulation Material: Thermoplastic
  • Insulation Color: Natural
  • Shrouding: Shrouded - 1 Wall
  • Contact Shape: Square
  • Pitch-Mating: 0.100" (2.54mm)
  • Contact Finish-Mating: Gold
  • Contact Finish Thickness-Mating: 15.0µin (0.38µm)
  • Contact Finish-Post: Tin
  • Contact Finish Thickness-Post: 150.0µin (3.81µm)
  • Contact Length-Post: 0.140" (3.56mm)
  • Overall Contact Length: 0.535" (13.59mm)
  • Insulation Height: 0.305" (7.75mm)
  • Contact Length-Mating: 0.295" (7.49mm)
  • Temperature Range: -55°C to 105°C
  • ECCN: EAR99
  • HTSUS: 8536.69.4040
