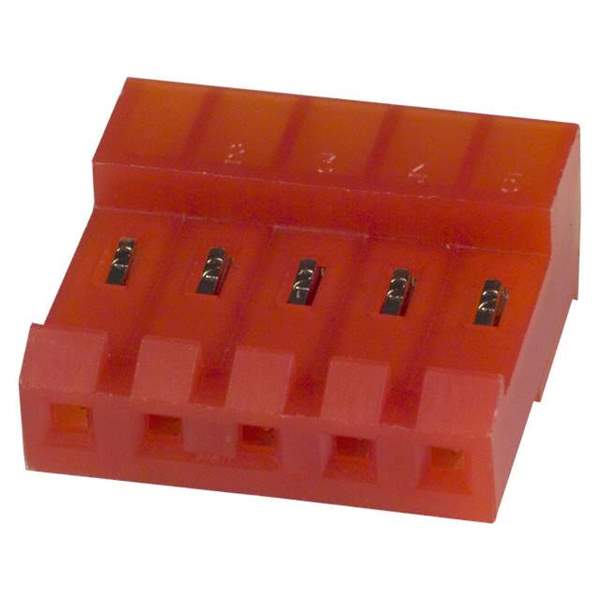

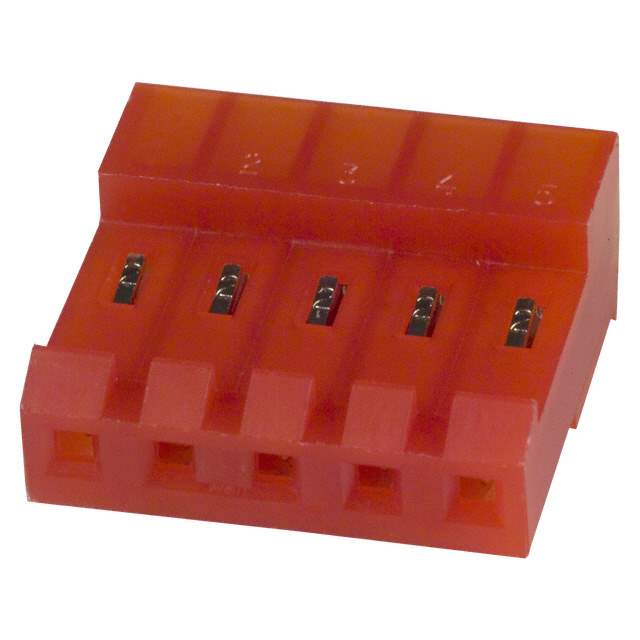

3-640428-5 Real Image
Same model may have multiple batches, images only for reference.

3-640428-5

Part No 3-640428-5
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN RCPT 5POS IDC 22AWG TIN / 5 Position Rectangular Receptacle Connector IDC Tin 22 AWG
Datasheet
3-640428-5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Free Hanging, Panel Mount
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 5
Pitch 0.156" (3.96mm)
Number of Rows 1
Mounting Free Hanging (In-Line)
Fastening Type Locking Ramp
Cable Termination IDC
Wire Type Discrete or Ribbon Cable
Wire Gauge 22 AWG
Features Closed End
Contact Finish Tin
Contact Finish Thickness 80.0µin (2.03µm)
Color Red
Base Product Number 640428
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.8000
Other Part Number 3-640428-5-ND,A31231,-3-640428-5-SI,36404285
Standard Package 250
Win Source Part Number 1334387-3-640428-5
Ultra Librarian 3D Model Ultra Librarian 3-640428-5 CAD Model

Description

This rectangular connector is from TE Connectivity AMP Connectors and has a packaging of bulk.

  • Packaging: bulk
  • Positions: 5
  • Pitch: 0.156 inches (3.96mm)
  • Color: red
  • Connector Type: receptacle
  • Contact Type: female socket
  • Fastening Type: locking ramp
  • Contact Finish: tin
  • Thickness: 80.0μin (2.03μm)
  • Wire Gauge: 22 AWG
  • Wire Types: discrete or ribbon cable
  • Standard Package: 250
  • RoHS Status: ROHS3 compliant
