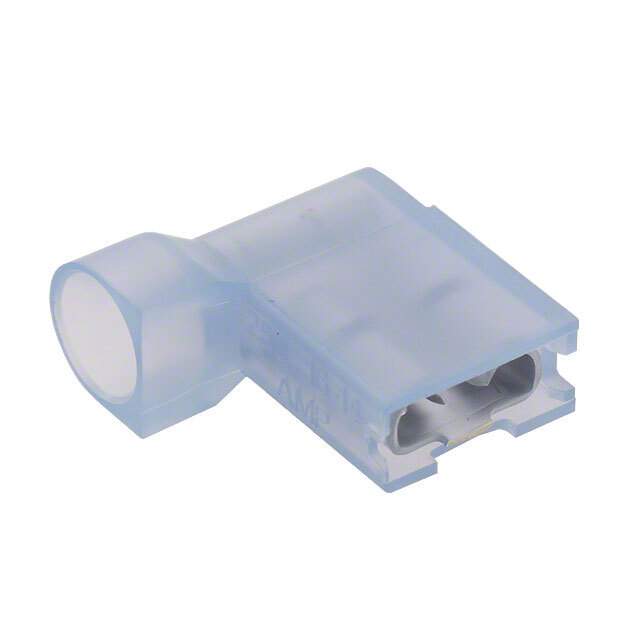

3-520132-2 Real Image
Same model may have multiple batches, images only for reference.

3-520132-2

Part No 3-520132-2
Manufacturer TE Connectivity
Catalog Terminals
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Ultra-Fast
Package Tape & Reel (TR),Cut Tape (CT)
Terminal Type Angled - 90°, Flag
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Termination Crimp
Wire Gauge 14-16 AWG
Insulation Fully Insulated
Mounting Type Free Hanging (In-Line), Right Angle
Color Blue
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.185" (4.70mm)
Base Product Number 520132
Other Names A27843TR,A27842,-3-520132-2-SI,A27843CT,-403670631-SI,35201322,-403670631-CSI,Q7693760,3-520132-2,-403670631-SI,A27842,-3-520132-2-CSI,-403670631-CSI
Standard Package 2,100
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1285192-3-520132-2
Ultra Librarian 3D Model Ultra Librarian 3-520132-2 CAD Model

Description

The TE Connectivity AMP Connectors 1285192-3-520132-2 is a female, angled - 90°, flag terminal type connector with fully insulated insulation.

  • Tab Width: 0.250" (6.35mm)
  • Tab Thickness: 0.032" (0.81mm)
  • Insulation Diameter: 0.185" (4.70mm)
  • Contact Material: brass
  • Contact Finish: tin
  • Wire Gauge: 14-16 AWG
  • Color: blue
  • Mounting: free hanging (in-line), right angle
  • Tab Length: -
