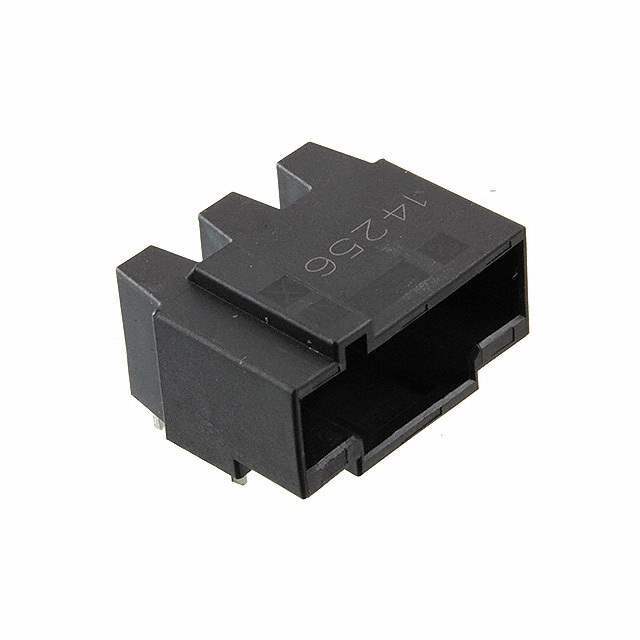

3-2229803-1 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

3-2229803-1

Part No 3-2229803-1
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER R/A 3POS 7.5MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1208541-3-2229803-1
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects -Rectangular Connectors -Headers, Male Pins
Package Tray
Product Status Active
Connector Type Header
Contact Type Tab
Pitch - Mating 0.295" (7.50mm)
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Ultra Librarian 3D Model Ultra Librarian 3-2229803-1 CAD Model

Description

PCB Terminal Blocks, Header, Wire-to-Board, 3 Position, .295 in [7.5 mm] Centerline, 1 Row, Operating Voltage 300 VAC, Dynamic 3000 Series
