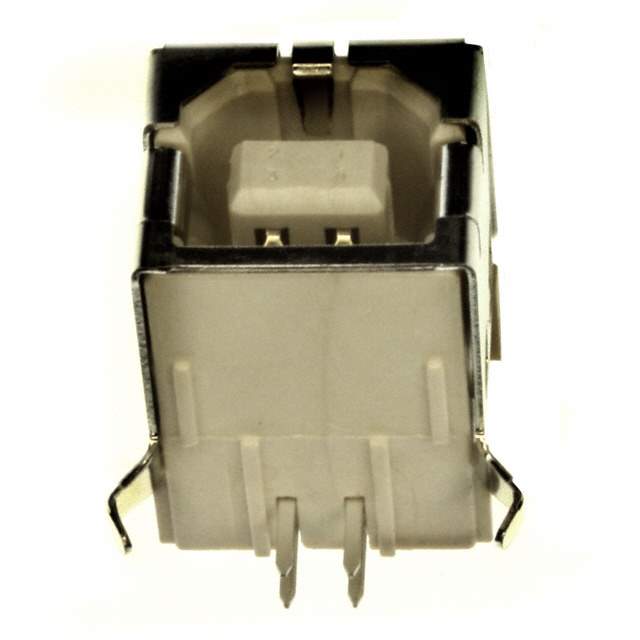

292304-2

Name: 292304-2
Brand: TE Connectivity
SKU: 540822
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	292304-2
Manufacturer	TE Connectivity
Catalog	USB, DVI, HDMI Connectors
Description	RECEPTACLE ASSEMBLY, RIGHT ANGLE, 4 POSITION, THRU-HOLE, TYPE B UNIVERSAL SERIAL BUS, LEAD FREE VERSION \| CONN RCPT USB2.0 TYPEB 4POS R/A
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	TE Connectivity AMP Connectors
Packaging	Bulk
Connector Type	USB - B
Number of Contacts	4
Gender	Receptacle
Specifications	USB 2.0
Mounting Style	Through Hole, Right Angle
Mounting Feature	Horizontal
Termination	Solder
Features	Board Lock
Temperature Range - Operating	-55°C ~ 85°C
Number of Ports	1
Current Rating (Amps)	1A per Contact
Voltage - Rated	30VAC
Mating Cycles	1500
Shielding	Shielded
Contact Finish	Gold or Gold-Palladium
Shell/Shielding Material	Copper Alloy
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Manufacturer Pack Quantity	100
MSL Level	1 (Unlimited)
Win Source Part Number	1123510-292304-2
Manufacturer Homepage	www.macom.com
Popularity	Medium
Supply and Demand Status	Limited
Application Field	Used in Computers & Computer Peripherals, Portable Devices, Consumer Electronics, Sensing & Instrumentation, Audio, Multimedia
Ultra Librarian 3D Model	Ultra Librarian 292304-2 CAD Model

Description

The 292304-2 is a USB-B type connector from TE Connectivity AMP Connectors.

Applications: Computers, computer peripherals, portable devices, consumer electronics, sensing and instrumentation, audio, and multimedia
Feature: Board lock
Mounting: Through-hole, right-angle configuration
Contacts: Four contacts
Contact Finish: Gold or gold-palladium
Shielding: Shielded
Maximum Voltage: 30VAC
Temperature Range: -55°C to +85°C
Mounting Feature: Horizontal
Mating Cycle: 1500
