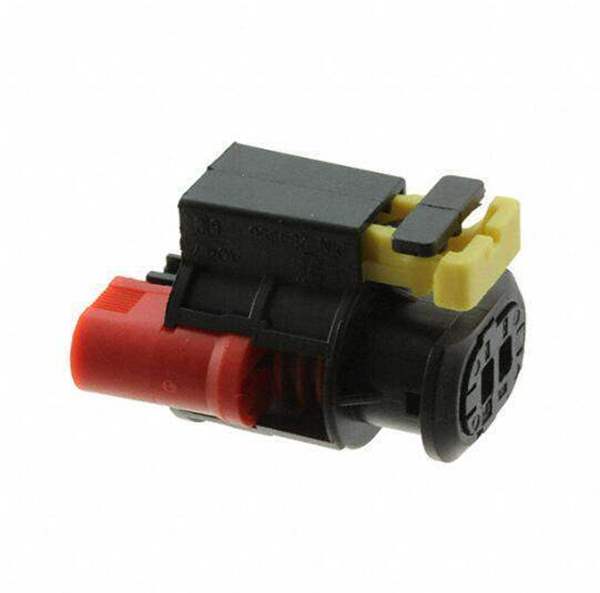

284556-1 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

284556-1

Part No 284556-1
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN RCPT HSG 2POS FOR SPARK CL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects Rectangular Connectors Rectangular Connector Housings
Package Bulk
Series SSC
Product Status Active
Connector Type Receptacle
Contact Type Tab
Number of Positions 2
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Latch Lock
Win Source Part Number WS1207433-284556-1
Ultra Librarian 3D Model Ultra Librarian 284556-1 CAD Model

Description

2 Rectangular Connectors - Housings Receptacle Black
