Same model may have multiple batches, images only for reference.

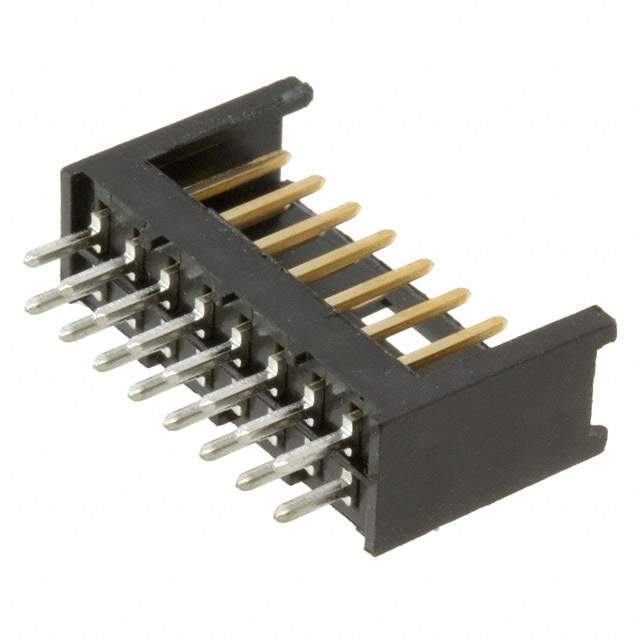

280385-2 Real Image
Same model may have multiple batches, images only for reference.

280385-2

Part No 280385-2
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 16POS 2.54MM / Connector Header Through Hole 16 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 16
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 3 Wall
Mounting Through Hole
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.260" (6.60mm)
Contact Length - Post 0.138" (3.50mm)
Overall Contact Length 0.563" (14.30mm)
Insulation Height 0.496" (12.60mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Thermoplastic
Temperature Range - Operating -40°C ~ 80°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Voltage Rating 40V
Contact Finish Thickness - Post 98.4µin (2.50µm)
Base Product Number 280385
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number -280385-2-CSI,280385-2-ND,-280385-2-LSI,A106410,2266-280385-2,2803852
Standard Package 500
Win Source Part Number 1332734-280385-2
Ultra Librarian 3D Model Ultra Librarian 280385-2 CAD Model

Description

The TE Connectivity AMP Connectors' 1332734-280385-2 is a header connector that has 16 positions and a voltage rating of 40V.

  • Positions: 16
  • Voltage Rating: 40V
  • Connector Type: Male Pin
  • Positions Loaded: All
  • Termination: Solder
  • Fastening Type: Detent Lock
  • Contact Material: Brass
  • Insulation Material: Thermoplastic
  • Shrouding: 3 Wall
  • Pitch - Mating: 0.100" (2.54mm)
  • Contact Finish - Mating: Gold, 15.0µin (0.38µm)
  • Contact Finish - Post: Tin, 98.4µin (2.50µm)
  • Temperature Range: -40°C ~ 80°C
