Same model may have multiple batches, images only for reference.

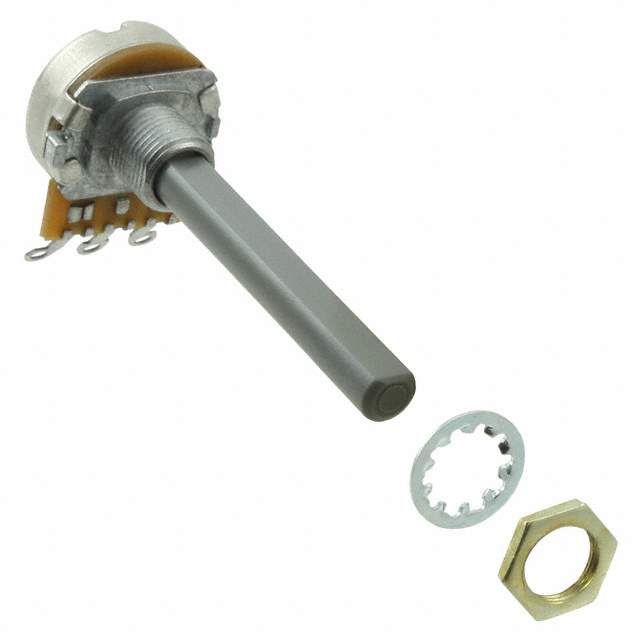

27ESB503MMF50N Real Image
Same model may have multiple batches, images only for reference.

27ESB503MMF50N

Part No 27ESB503MMF50N
Manufacturer TE Connectivity
Catalog Potentiometers, Variable Resistors
Description POT 50K OHM 1/5W CARBON LOG  /  50k Ohm 2 Gang Logarithmic Panel Mount Potentiometer None 1.0 Kierros Carbon 0.2W, 1/5W Solder Lug
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors>Rotary Potentiometers, Rheostats
Mfr TE Connectivity Passive Product
Series 23, Citec
Package Bulk
Resistance (Ohms) 50k
Tolerance ±20%
Power (Watts) 0.2W, 1/5W
Built in Switch None
Number of Turns 1
Taper Logarithmic
Number of Gangs 2
Adjustment Type User Defined
Temperature Coefficient 5%
Rotation 300°
Resistive Material Carbon
Termination Style Solder Lug
Actuator Type Flatted
Actuator Length 1.969" (50.00mm)
Actuator Diameter 0.250" (6.35mm)
Mounting Type Panel Mount
Size - Body Rectangular - 0.992" x 0.803" Face (25.20mm x 20.40mm)
Base Product Number 27ESB
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8533.40.8070
Other Names 1624186-1,1624186-1-ND
Standard Package 500
Win Source Part Number 1047776-27ESB503MMF50N
Ultra Librarian 3D Model Ultra Librarian 27ESB503MMF50N CAD Model

Description

The TE Connectivity Passive Product 27ESB503MMF50N is a rotary potentiometer designed for use in potentiometers and variable resistors.

  • Category: Potentiometers and Variable Resistors
  • Resistance: 50k ohms
  • Power (watts): 0.2W, 1/5W
  • Tolerance: ±20%
  • Temperature Coefficient: 5%
  • Actuator Type: Flatted
  • Actuator Length: 1.969" (50.00mm)
  • Number of Turns: 1
  • Adjustment Type: User-defined
  • Resistive Material: Carbon
  • Taper: Logarithmic
  • Number of Gangs: 2
  • Built-in Switch: No
  • Rotation: 300°
  • Actuator Diameter: 0.250" (6.35mm)
  • Body Size: Rectangular - 0.992" x 0.803" face (25.20mm x 20.40mm)
  • Mounting Type: Panel mount
  • Alternative Parts (Cross-Reference): PDA241-HRT02-503A2, PDA241-SRT02-503A2, 3310C-001-503L, 23ESB473MMF50NF, 27ESB473MMF50NF, 27ESA503MMF50N, PDA241-HRT02-503B0, PDB181-E415F-503A2, P231-FA25BR50K, and P170N-QC12BR50K1624186-1
  • MSL Level: 1 (Unlimited)
  • ECCN: EAR99
  • REACH Status: Vendor undefined
  • HTSUS: 8533.40.8070
