2301841-2 TE Connectivity
Same model may have multiple batches, images only for reference.

2301841-2

Part No 2301841-2
Manufacturer TE Connectivity
Catalog D-Sub, D-Shaped Connectors - Assemblies

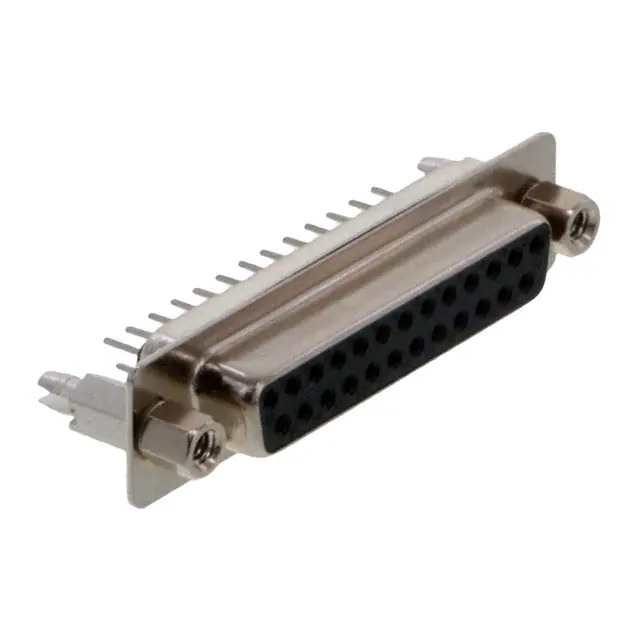

Description CONN D-SUB RCPT 25POS VERT SLDR / 25 Position D-Sub Receptacle, Female Sockets Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HD-20
Package Tray
Product Status Active
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 25
Number of Rows 2
Mounting Type Through Hole
Shell Size, Connector Layout 3 (DB, B)
Contact Type Signal
Flange Feature Mating Side, Female Screwlock (4-40)
Termination Solder
Shell Material, Finish Steel, Tin-Nickel Plated
Contact Finish Gold
Contact Finish Thickness 15.0µin (0.38µm)
Ingress Protection -
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1.5A
Backset Spacing -
Features Board Lock
Voltage Rating 250V
Color Black
Contact Form -
Dielectric Material Polybutylene Terephthalate (PBT), Glass Filled
Wire Gauge -
Contact Material Brass
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 2301841
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1365147-2301841-2
Ultra Librarian 3D Model Ultra Librarian 2301841-2 CAD Model

Description

The TE Connectivity AMP Connectors AMPLIMITE HD-20 series offers a reliable and efficient solution for D-sub connector assemblies.

  • Positions: 25
  • Rows: 2
  • Mounting: Through-Hole
  • Contact Finish: Gold
  • Current Rating: 1.5A
  • Operating Temperature: -55°C to 105°C
  • Contact Material: Brass
  • Shell Material: Steel with Tin-Nickel Plating
  • Features: Board Lock
