2301836-1 TE Connectivity
Same model may have multiple batches, images only for reference.

2301836-1

Part No 2301836-1
Manufacturer TE Connectivity
Catalog D-Sub, D-Shaped Connectors - Assemblies

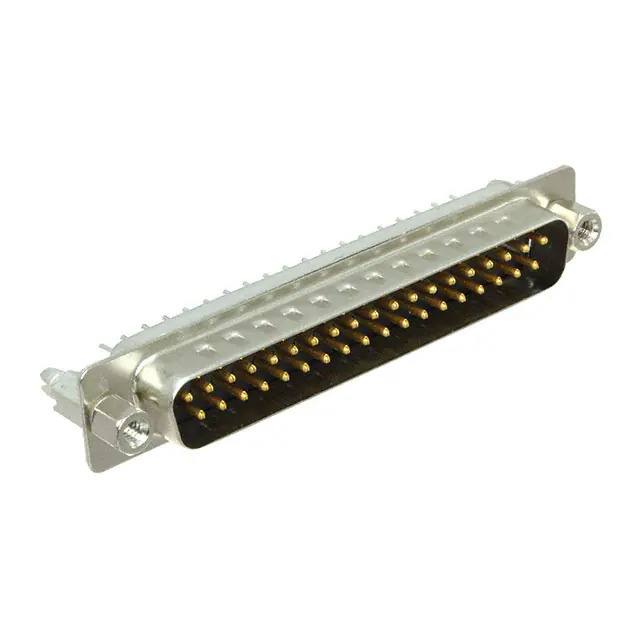

Description CONN D-SUB PLUG 37POS VERT SLDR / 37 Position D-Sub Plug, Male Pins Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HD-20
Package Tray
Product Status Active
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 37
Number of Rows 2
Mounting Type Through Hole
Shell Size, Connector Layout 4 (DC, C)
Contact Type Signal
Flange Feature Mating Side, Female Screwlock (4-40)
Termination Solder
Shell Material, Finish Steel, Tin-Nickel Plated
Contact Finish Gold
Contact Finish Thickness 15.0µin (0.38µm)
Ingress Protection -
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1.5A
Backset Spacing -
Features Board Lock, Grounding Indents
Voltage Rating 250V
Color Black
Contact Form -
Dielectric Material Polybutylene Terephthalate (PBT), Glass Filled
Wire Gauge -
Contact Material Brass
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 2301836
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1365151-2301836-1
Ultra Librarian 3D Model Ultra Librarian 2301836-1 CAD Model

Description

The TE Connectivity AMP Connectors AMPLIMITE HD-20 is a D-Sub connector assembly with a plug and male pins configuration.

  • Positions: 37
  • Rows: 2
  • Mounting Type: Through Hole
  • Current Rating: 1.5A
  • Contact Material: Brass
  • Contact Finish: Gold
  • Voltage Rating: 250V
  • Flammability Rating: UL94 V-0
  • Features: Grounding Indents, Board Lock
  • Shell Material: Steel
  • Shell Finish: Tin-Nickel Plated
  • Mating Side: Female Screwlock
  • Operating Temperature: -55°C to 105°C
