Same model may have multiple batches, images only for reference.

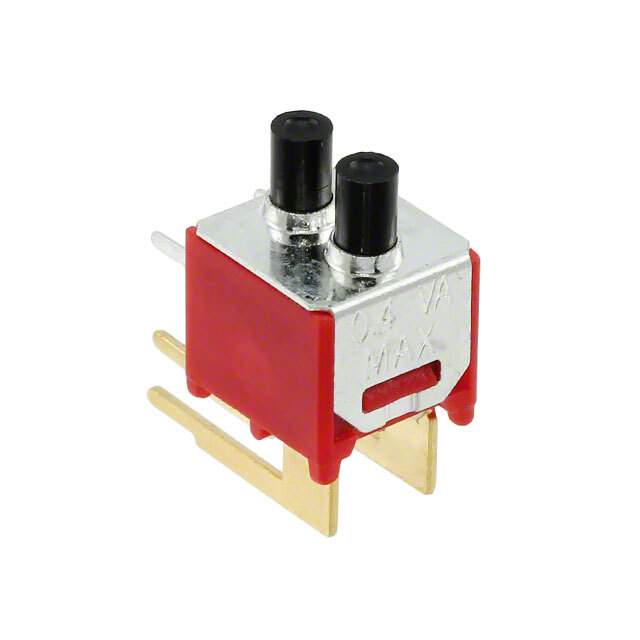

2267072-3 Real Image
Same model may have multiple batches, images only for reference.

2267072-3

Part No 2267072-3
Manufacturer TE Connectivity
Catalog Pushbutton Switches
Description Switch Push Button ON Mom DPDT Round Plunger 20VAC 20VDC 0.4VA Momentary Contact PC Pins Thru-Hole Loose
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Actuator Length 3.937 mm
Actuator Material Polyester, Thermoplastic
Contact Plating Gold
ELV Compliant
Mount Through Hole
RoHS Compliant
Throw Configuration DPDT
Type Switch
Win Source Part Number 1024197-2267072-3
Categories Pushbutton Switches
Manufacturer TE Connectivity
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 2267072-3 CAD Model

Description

The 2267072-3 is a DPDT pushbutton switch manufactured by TE Connectivity. TE Connectivity 2267072-3

  • Switch Type: DPDT Pushbutton
  • Actuator Material: Polyester and Thermoplastic
  • Contact Plating: Gold
  • RoHS Compliant: Yes
  • ELV Compliant: Yes
  • Supply and Demand Status: Shortage
