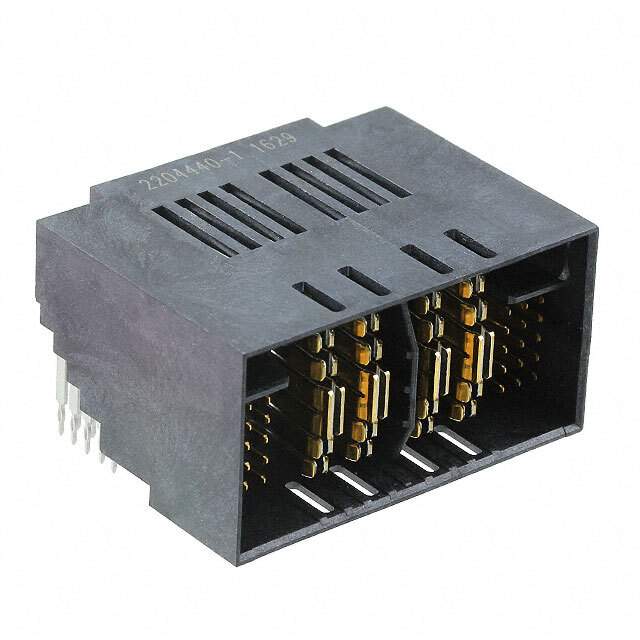

2204440-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Backplane Connectors - Specialized
Mfr TE Connectivity AMP Connectors
Series MULTI-BEAM HD
Package Tray
Connector Type Plug, Male Pins and Blades
Connector Style Multi-Beam
Number of Positions 34
Number of Positions Loaded All
Mounting Type Board Edge, Through Hole, Right Angle
Termination Press-Fit
Contact Layout, Typical 30 Signal, 4 Power
Features Board Guide
Contact Finish Gold or Gold-Palladium
Color Black
Material Flammability Rating UL94 V-0
Temperature Range - Operating -40°C ~ 125°C
Base Product Number 2204440
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names A124467,-2204440-1-SI,2266-2204440-1
Standard Package 84
Win Source Part Number 1212928-2204440-1
Ultra Librarian 3D Model Ultra Librarian 2204440-1 CAD Model

Description

The MULTI-BEAM HD backplane connector is designed for use in specialized applications.

  • Positions Loaded: 34 (30 Signal, 4 Power)
  • Connector Type: Plug
  • Contact Gender: Male Pins and Blades
  • Mounting Orientation: Right Angle
  • Termination: Press-Fit
  • Packaging: Tray
  • Temperature Range: -40°C ~ 125°C
  • Manufacturer: TE Connectivity AMP Connectors
