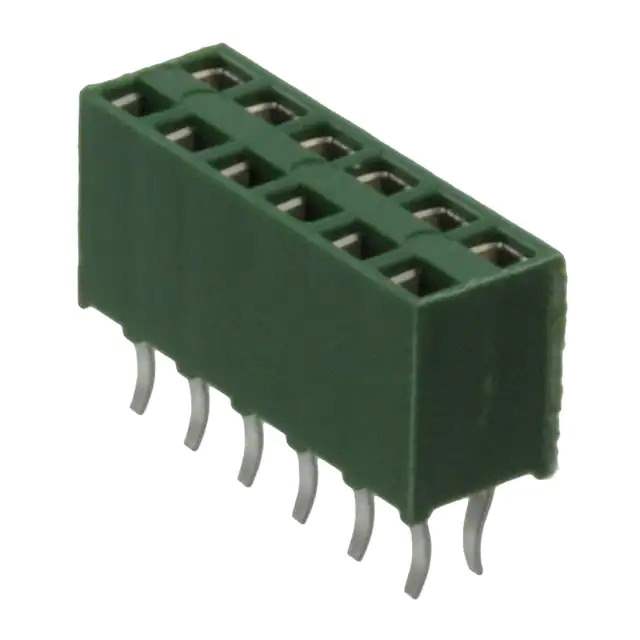

215307-6

Name: 215307-6
Brand: TE Connectivity
SKU: 854565
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	215307-6
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN RCPT 12POS 0.1 GOLD PCB / 12 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	TE Connectivity
Series	AMPMODU HV-100
Package	Tray
Product Status	Active
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	12
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Kinked Pin, Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	31.5µin (0.80µm)
Insulation Color	Black or Green
Insulation Height	0.276" (7.00mm)
Contact Length - Post	0.122" (3.10mm)
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Insulation Material	Polyester, Glass Filled
Contact Shape	Square
Contact Material	Phosphor Bronze
Contact Finish Thickness - Post	98.4µin (2.50µm)
Base Product Number	215307
Standard Package	120 pcs
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	854565-215307-6
Ultra Librarian 3D Model	Ultra Librarian 215307-6 CAD Model

Description

The TE Connectivity 854565-215307-6 is a rectangular connector header with 12 positions.

Series: AMPMODU HV-100
Connection: Board-to-board
Type: Receptacle
Contact: Female sockets
Positions Loaded: All
Rows: 2
Termination: Kinked pins and solder
Fastening Type: Push-pull
Package: Tray
Contact Material: Phosphor bronze
Contact Finish Thickness: 31.5μin (0.80μm)
Post Finish: Tin with a thickness of 98.4μin (2.50μm)
Pitch: 0.100" (2.54mm)
Mounting: Through-hole
Product Status: Active
