Same model may have multiple batches, images only for reference.

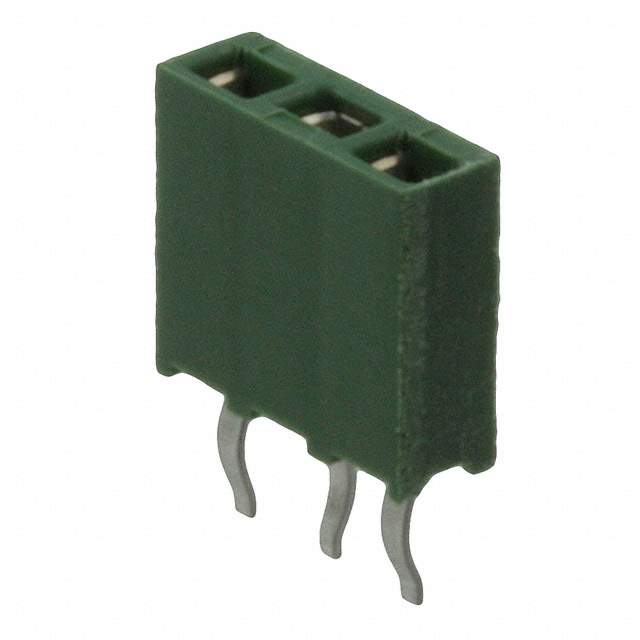

215297-3 Real Image
Same model may have multiple batches, images only for reference.

215297-3

Part No 215297-3
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN RCPT 3POS 0.1 GOLD PCB / 3 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Receptacles, Female Sockets
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 3
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 1
Mounting Through Hole
Termination Kinked Pin, Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 31.5µin (0.80µm)
Insulation Color Green
Insulation Height 0.276" (7.00mm)
Contact Length - Post 0.122" (3.10mm)
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Insulation Material Polyester, Glass Filled
Contact Shape Square
Contact Material Phosphor Bronze
Contact Finish Thickness - Post 118.1µin (3.00µm)
Base Product Number 215297
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 2266-215297-3,A106650,215297-3-ND,2152973,-215297-3-SI
Standard Package 240
Win Source Part Number 1332764-215297-3
Ultra Librarian 3D Model Ultra Librarian 215297-3 CAD Model

Description

The TE Connectivity AMP Connectors 1332764-215297-3 is a rectangular connector that is designed for board-to-board applications.

  • Application: Board-to-Board
  • Connector Type: Receptacle
  • Contact Type: Female Socket
  • Positions: 3
  • Positions Loaded: All
  • Fastening Type: Push-Pull
  • Contact Material: Phosphor Bronze
  • Insulation Material: Polyester, Glass-Filled
  • Pitch-Mating: 0.100" (2.54mm)
  • Contact Finish-Mating: Gold
  • Contact Finish Thickness-Mating: 31.5µin (0.80µm)
  • Contact Finish-Post: Tin
  • Contact Finish Thickness-Post: 118.1µin (3.00µm)
  • Insulation Color: Green
  • Contact Length-Post: 0.122" (3.10mm)
  • Contact Shape: Square
  • Mounting: Through Hole
