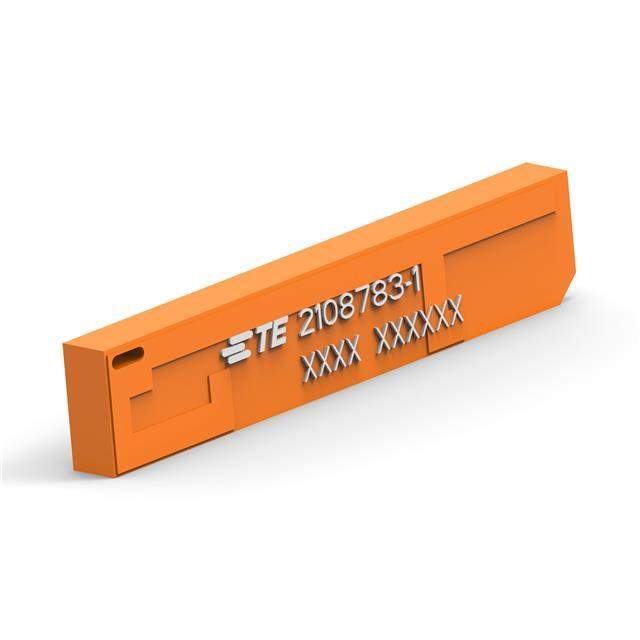

Same model may have multiple batches, images only for reference.

2108783-1

Name: 2108783-1
Brand: TE Connectivity
SKU: 980310
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	2108783-1
Manufacturer	TE Connectivity
Catalog	RF Antennas
Description	PCB ANTENNA, SMD, 617-3800MHZ / 780MHz, 1.515GHz, 2.2GHz, 3.55GHz CDMA, GSM, LTE PCB Trace RF Antenna 698MHz ~ 862MHz, 1.42GHz ~ 1.61GHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz 4.9dBi, 2dBi, 2.5dBi, 3.2dBi Solder Surface Mount
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	RF/IF and RFID>RF Antennas
Mfr	TE Connectivity AMP Connectors
Package	Bag
RF Family/Standard	Cellular
Frequency Group	Wide Band
Frequency (Center/Band)	780MHz, 1.515GHz, 2.2GHz, 3.55GHz
Frequency Range	698MHz ~ 862MHz, 1.42GHz ~ 1.61GHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz
Antenna Type	PCB Trace
Number of Bands	4
VSWR	2
Gain	4.9dBi, 2dBi, 2.5dBi, 3.2dBi
Termination	Solder
Mounting	SMD (SMT)
Height (Max)	0.125" (3.18mm)
Applications	CDMA, GSM, LTE
Base Product Number	210878
RoHS Status	Not applicable
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8517.79.0000
Other Names	17-2108783-1,-1076-2108783-1
Standard Package	100
Win Source Part Number	980310-2108783-1
Ultra Librarian 3D Model	Ultra Librarian 2108783-1 CAD Model

Description

The 980310-2108783-1 is a wide band PCB trace antenna designed for CDMA, GSM, LTE, and other cellular applications.

Frequency Range: 698MHz ~ 862MHz, 1.42GHz ~ 1.61GHz, 1.71GHz ~ 2.69GHz, and 3.3GHz ~ 3.8GHz
Height: 0.125" (3.18mm)
Package: Bag
Bands: Four
VSWR: 2
Gain (780MHz): 4.9dBi
Gain (1.515GHz): 2dBi
Gain (2.2GHz): 2.5dBi
Gain (3.55GHz): 3.2dBi
Mounting: SMD (SMT)
Frequency Group: Wide
