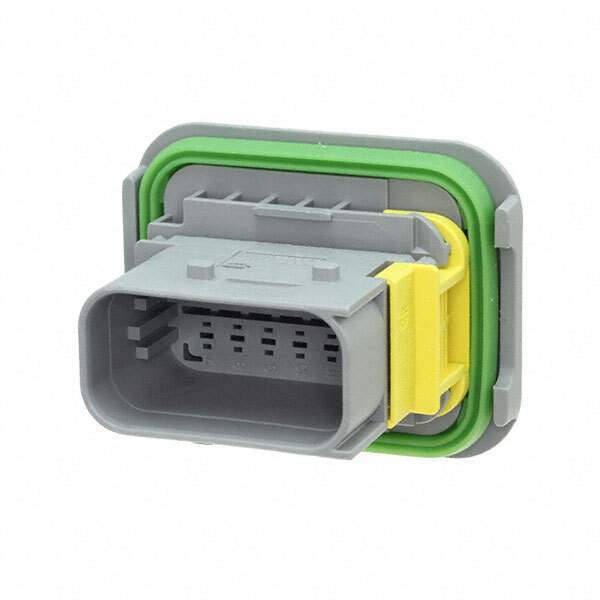

2-1564520-1TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

2-1564520-1

Part No 2-1564520-1
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN PLUG HSG 12POS 4.00MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1207577-2-1564520-1
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects -Rectangular Connectors- Rectangular Connector Housings
Series Heavy Duty Sealed Connector Series, MCP
Package Box
Product Status Active
Connector Type Plug
Contact Type Tab
Pitch 0.157" (4.00mm)
Features Mounting Flange, Sealed
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Ultra Librarian 3D Model Ultra Librarian 2-1564520-1 CAD Model

Description

Housing for Male Terminals, Wire-to-Wire, 12 Position, .157 in [4 mm] Centerline, Sealable, Gray, Signal, Heavy Duty Sealed
