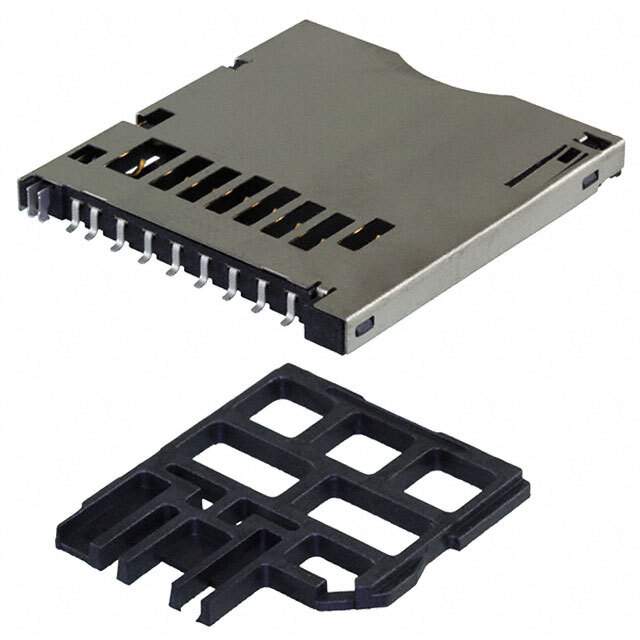

1775059-1 Real Image
Same model may have multiple batches, images only for reference.

1775059-1

Part No 1775059-1
Manufacturer TE Connectivity
Catalog Memory Connectors - PC Card Sockets
Description CONN SD CARD PUSH-PUSH R/A SMD / 12 (9 + 3) Position Card Connector Secure Digital - SD Surface Mount, Right Angle Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Memory Connectors - PC Card Sockets
Mfr TE Connectivity AMP Connectors
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Obsolete
Card Type Secure Digital - SD
Number of Positions 12 (9 + 3)
Connector Type Connector and Ejector
Insertion, Removal Method Push In, Push Out
Mounting Type Surface Mount, Right Angle
Features Board Guide, Switch
Height Above Board 0.112" (2.85mm)
Mounting Feature Reverse - Bottom
Contact Finish Gold
Contact Finish Thickness 5.00µin (0.127µm)
Base Product Number 1775059
Standard Package 350
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1351906-1775059-1
Ultra Librarian 3D Model Ultra Librarian 1775059-1 CAD Model

Description

The 1775059-1 PC card socket from TE Connectivity AMP Connectors is a 12-position (9 + 3) secure digital (SD) card type socket that belongs to the connectors, interconnects - memory connectors - PC card sockets category.

  • Number of Positions: 12 (9 + 3)
  • Card Type: Secure Digital (SD)
  • Board Guide: Yes
  • Switch Feature: Yes
  • Mounting Type: Surface Mount, Right Angle
  • Contact Finish: Gold
  • Contact Finish Thickness: 5.00µin (0.127µm)
  • Height Above Board: 0.112 inches (2.85mm)
