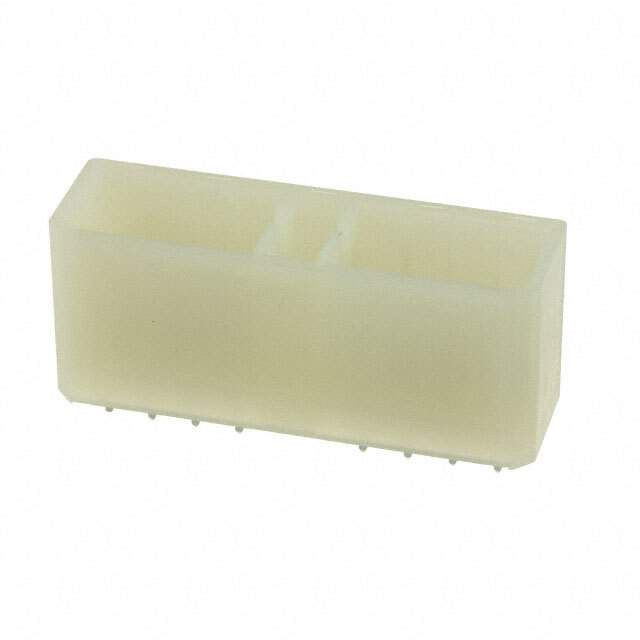

171363-1 Real Image
Same model may have multiple batches, images only for reference.

171363-1

Part No 171363-1
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 17POS / Connector Header Through Hole 17 position
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series MIC (Multi-Interlock)
Package Tray
Connector Type Header
Contact Type Tab
Number of Positions 17
Number of Rows 2
Row Spacing - Mating 0.236" (6.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.157" (4.00mm)
Insulation Height 0.866" (22.00mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Temperature Range - Operating -30°C ~ 105°C
Insulation Color Natural
Applications General Purpose
Base Product Number 171363
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 171363-1-ND,2266-171363-1,-171363-1-SI,A123100
Standard Package 80
Win Source Part Number 1039950-171363-1
Ultra Librarian 3D Model Ultra Librarian 171363-1 CAD Model

Description

The TE Connectivity 171363-1 is a 17-position header connector that is ideal for various electronic applications.

  • Manufacturer: TE Connectivity
  • Positions: 17
  • Series: MIC (Multi-Interlock)
  • Shrouding: Shrouded-4 Wall
  • Mounting Type: Through Hole
  • Row Spacing: 0.236" (6.00mm)
  • Temperature Range: -30°C to 105°C
  • Insulation Material: Polyamide (PA66), Nylon 6/6
  • Contact Finish: Tin
  • Positions Loaded: All
  • ECCN: EAR99
  • HTSUS Code: 8536.69.4040
