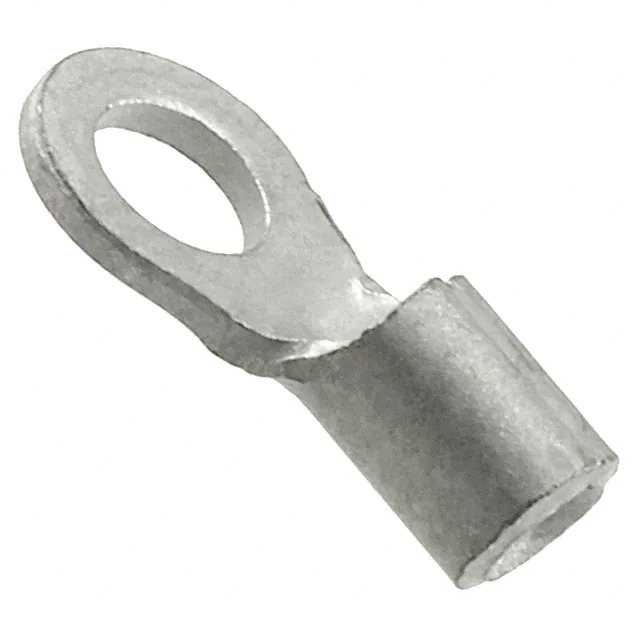

170720-1 TE Connectivity
Same model may have multiple batches, images only for reference.

170720-1

Part No 170720-1
Manufacturer TE Connectivity
Catalog Terminals
Description CONN RING CIRC 18-22AWG #5 CRIMP / Ring Terminal Connector 5 Stud Circular 18-22 AWG Crimp
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Ring Connectors
Mfr TE Connectivity AMP Connectors
Series Solistrand
Package Bulk
Product Status Active
Terminal Type Circular
Stud/Tab Size 5 Stud
Thickness 0.031" (0.79mm)
Width - Outer Edges 0.217" (5.50mm)
Length - Overall 0.492" (12.50mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 18-22 AWG
Insulation Non-Insulated
Features Serrated Termination
Color -
Contact Material Copper
Contact Finish Tin
Insulation Diameter -
Material - Insulation -
Base Product Number 170720
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1365059-170720-1
Ultra Librarian 3D Model Ultra Librarian 170720-1 CAD Model

Description

The TE Connectivity AMP Connectors Solistrand series offers high-quality ring connectors for reliable electrical connections.

  • Wire Gauge: 18-22 AWG
  • Termination: Crimp
  • Termination Type: Serrated
  • Overall Length: 0.492" (12.50mm)
  • Stud/Tab Size: 5 Stud
  • Contact Material: Copper
  • Contact Finish: Tin
  • Product Status: Active
