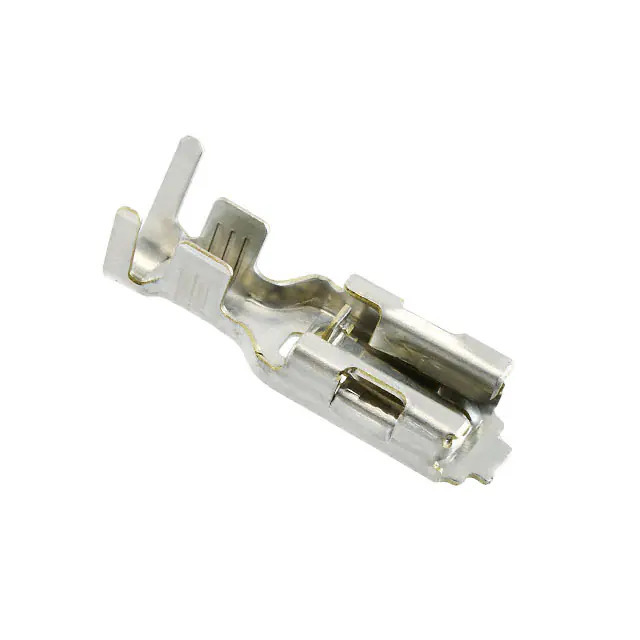

170456-1 TE Connectivity
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Mark II
Package Tape & Reel (TR)
Product Status Active
Terminal Type Standard
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Tab Length -
Length - Overall 0.898" (22.80mm)
Termination Crimp
Wire Gauge 10-12 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line)
Features -
Color -
Contact Material Brass
Contact Finish -
Insulation Diameter 0.142" ~ 0.197" (3.61mm ~ 5.00mm)
Base Product Number 170456
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1365034-170456-1
Ultra Librarian 3D Model Ultra Librarian 170456-1 CAD Model

Description

The 1365034-170456-1 is a quick disconnect connector from TE Connectivity AMP Connectors.

  • Series: Mark II
  • Package: Tape & Reel
  • Wire Gauge: 10-12 AWG
  • Termination Style: Crimp
  • Terminal Type: Standard
  • Status: Active
  • MSL Level: Unlimited
  • Base Product Number: 170456
  • HTSUS Code: 8536.90.4000
  • ECCN: EAR99
