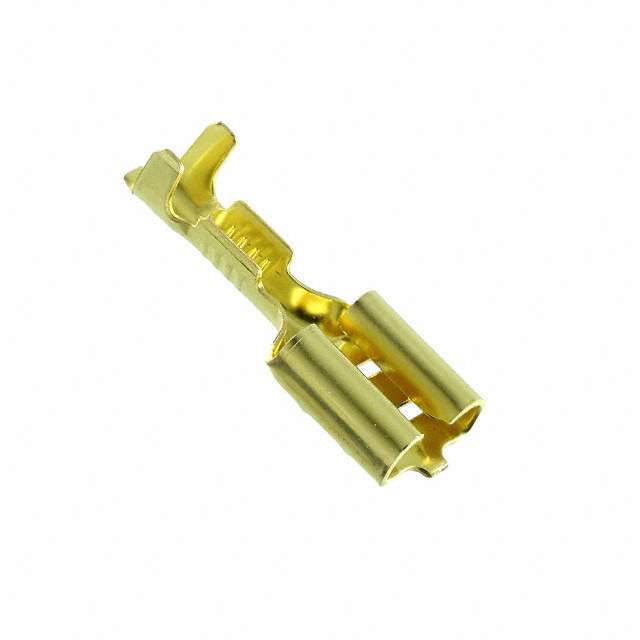

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Terminal Type Standard
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.031" (0.79mm)
Tab Length 0.307" (7.80mm)
Length - Overall 0.744" (18.90mm)
Termination Crimp
Wire Gauge 14-18 AWG
Insulation Non-Insulated
Mounting Free Hanging (In-Line)
Contact Material Brass
Insulation Diameter 0.100" ~ 0.170" (2.54mm ~ 4.32mm)
Base Product Number 170213
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number 170213-1-ND,A131027TR,A131027DKR-ND,A131027CT,A131027DKR,A131027DKRINACTIVE
Standard Package 5,000
Win Source Part Number 1333790-170213-1
Ultra Librarian 3D Model Ultra Librarian 170213-1 CAD Model

Description

The 1333790-170213-1 is a TE Connectivity AMP Connectors quick disconnect connector that is designed for female terminals.

  • Connector Type: Quick Disconnect
  • Gender: Female
  • Termination Type: Crimp
  • Wire Gauge: 14-18 AWG
  • Insulation: Non-Insulated
  • Tab Width: 0.250 inches
  • Tab Thickness: 0.031 inches
  • Overall Length: 0.744 inches
  • Packaging: Reel of 5,000
