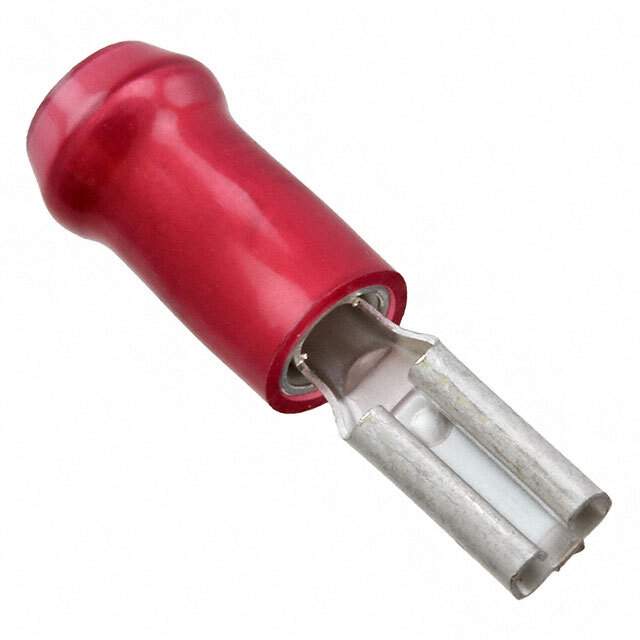

165565-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Faston, PIDG
Package Bulk
Terminal Type Standard
Gender Female
Tab Width 0.110" (2.79mm)
Tab Thickness 0.020" (0.51mm)
Tab Length 0.248" (6.30mm)
Length - Overall 0.780" (19.81mm)
Termination Crimp
Wire Gauge 16-22 AWG
Insulation Non-Mating End Insulated
Mounting Type Free Hanging (In-Line)
Color Red
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.140" (3.56mm)
Base Product Number 165565
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Names A90239-000,165565-1-ND,A112604,-165565-1-SI,-A90239-000-SI,-A90239-000-SI-ND,-A90239-000-LSI,2266-165565-1
Standard Package 1,000
Win Source Part Number 1144929-165565-1
Ultra Librarian 3D Model Ultra Librarian 165565-1 CAD Model

Description

The TE Connectivity AMP Connectors 165565-1 is a female quick disconnect connector that is part of the Faston and PIDG series.

  • Series: Faston and PIDG
  • Type: Female Quick Disconnect
  • Termination: Crimp
  • Contact Finish: Tin
  • Wire Gauge: 16-22 AWG
  • Insulation: Non-Mating End
  • Tab Width: 0.110 inches
  • Tab Thickness: 0.020 inches
  • Overall Length: 0.780 inches
  • Tab Length: 0.248 inches
  • Insulation Diameter: 0.140 inches
  • Mounting: Free Hanging (In-Line)
  • Package: Bulk
  • Alternative Parts: 165565-1, A90239-000, 2266-165565-1
