Products specifications Report Issue?

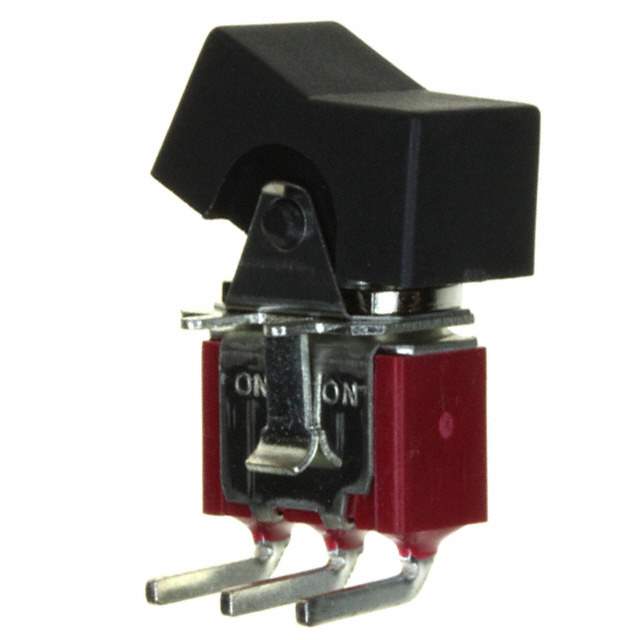

Categories Switches
Manufacturer TE Connectivity ALCOSWITCH Switches
Packaging Bulk
Status Active
Circuit SPDT
Switch Function On-On
Current Rating 5A (AC/DC)
Voltage Rating - AC 120V
Voltage Rating - DC 28V
Actuator Type Concave (Standard V)
Color - Actuator/Cap Black
Actuator Marking No Marking
Mounting Through Hole, Right Angle
Termination Style PC Pin
Features Epoxy Sealed Terminals
Temperature Range - Operating -30°C to 85°C
Electrical Life 6,000 Cycles
Win Source Part Number 056928-1571986-8
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 1571986-8 CAD Model

Description

Product Overview

The 1571986-8 connector is engineered for robust performance in challenging environments. It is crafted to ensure consistent electrical connectivity, providing reliability where it matters most.

Features and Benefits

  • High resistance to environmental stress
  • Easy-to-use design fits multiple configurations
  • Safe and secure locking mechanism
  • Enhanced conductivity for improved performance

Applications

  • Military and aerospace projects
  • Commercial electronics
  • Renewable energy installations
  • Data communication systems

An optimal blend of durability and ease of use, the 1571986-8 connector is suited for sectors where dependable performance is paramount.
