Products specifications Report Issue?

Category Connectors, Interconnects>Sockets for ICs, Transistors
Mfr TE Connectivity AMP Connectors
Series PCS
Package Bulk
Product Status Obsolete
Type PLCC
Number of Positions or Pins (Grid) 84 (4 x 21)
Pitch - Mating 0.100" (2.54mm)
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 180.0µin (4.57µm)
Contact Material - Mating Copper Alloy
Mounting Type Through Hole
Features Closed Frame
Termination Solder
Pitch - Post 0.100" (2.54mm)
Contact Finish - Post Tin
Contact Finish Thickness - Post 180.0µin (4.57µm)
Contact Material - Post Copper Alloy
Housing Material Polyphenylene Sulfide (PPS)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1 A
Contact Resistance 30mOhm
Base Product Number 1571541
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names -PCS-084A-1-LF-SI,-1571541-4-SI,15715414,-PCS-084A-1-LF-SI-ND
Standard Package 17
Win Source Part Number 1022603-1571541-4
Ultra Librarian 3D Model Ultra Librarian 1571541-4 CAD Model

Description

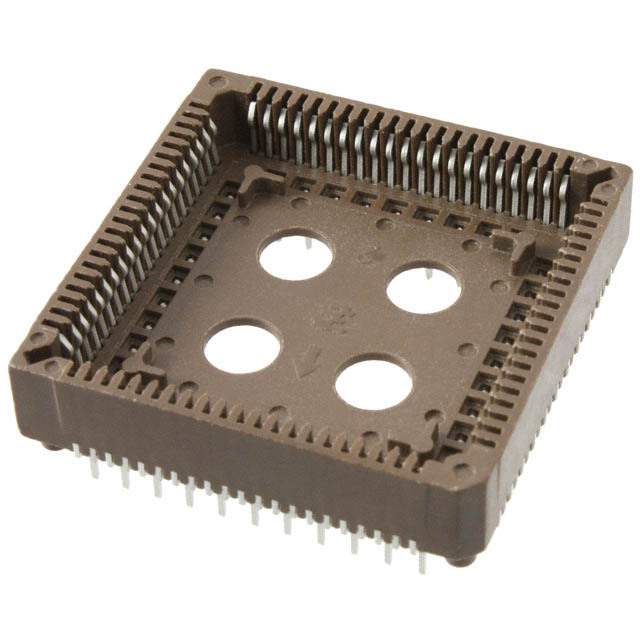

The 1022603-1571541-4 is a PLCC socket that is designed to provide high performance and reliability for a variety of electronic devices.

  • Frame: Closed frame
  • Housing Material: Polyphenylene sulfide (PPS)
  • Contact Finish: Tin
  • Contact Finish Thickness: 180.0µin (4.57µm)
  • Current Rating: 1 A
  • Contact Resistance: 30mOhm
  • Temperature Range: -40°C to 85°C
  • REACH: REACH unaffected
  • Package: Bulk
  • Standard Package: 17
  • Positions: 84 positions or pins (grid)
  • Pitch: 0.100" (2.54mm)
