Same model may have multiple batches, images only for reference.

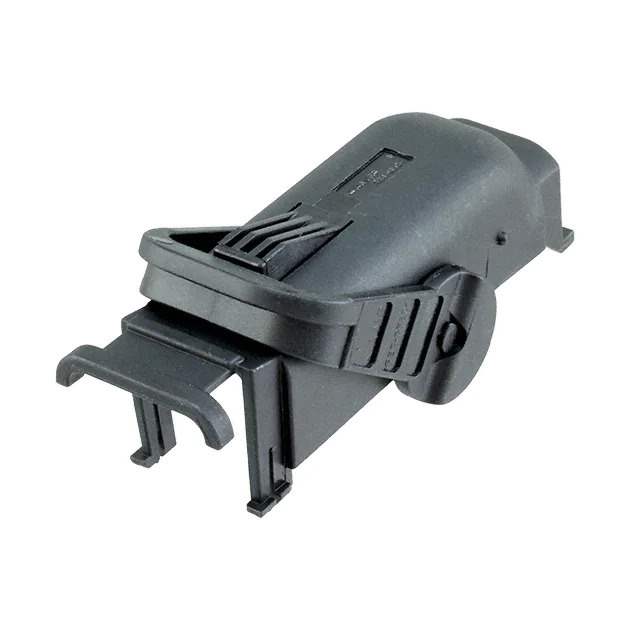

1473247-1 Real Image
Same model may have multiple batches, images only for reference.

1473247-1

Part No 1473247-1
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description MQS 81P LEVER(R) ASSY / Connector Backshell For Micro Quadlok Series
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Accessories
Mfr TE Connectivity
Series Micro Quadlok
Package Bag
Product Status Active
Accessory Type Backshell
Number of Positions 81
For Use With/Related Products Micro Quadlok Series
Features Lever on Right
Base Product Number 1473247
Standard Package 70 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 854004-1473247-1
Ultra Librarian 3D Model Ultra Librarian 1473247-1 CAD Model

Description

The Micro Quadlok series backshell accessory is designed for use with the Micro Quadlok series connectors.

  • Feature: Lever on the right side
  • Package: Bag package
  • Standard Package: 70 pieces
  • REACH: Unaffected
  • ECCN: EAR99
