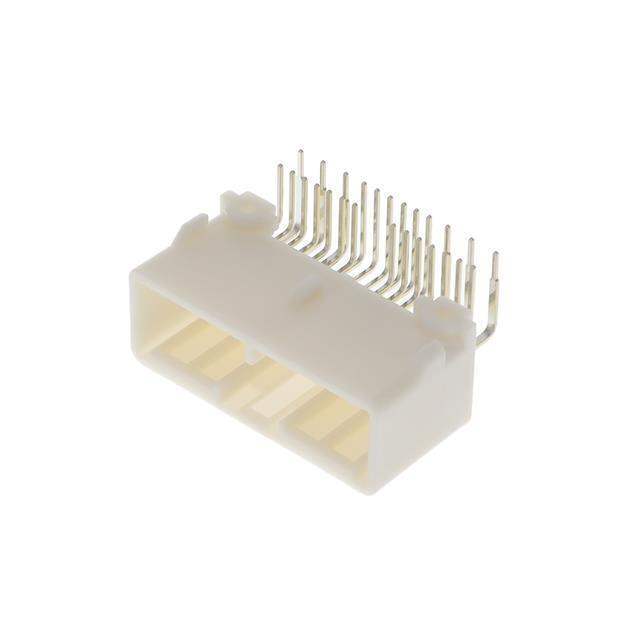

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1310200-1376357-3
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects > Rectangular Connectors > Headers, Male Pins
Packaging Tube
Part Status Active
Connector Type Header
Contact Type Male Pin
Number of Rows 2
Number of Positions Loaded All
Number of Positions 26
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Ultra Librarian 3D Model Ultra Librarian 1376357-3 CAD Model

Description

PCB Mount Header, Horizontal, Wire-to-Board, 26 Position, 2.2 mm / 4 mm [.087 in / .157 in] Centerline, Fully Shrouded, Tin, 0.64/025 Connector System
