Same model may have multiple batches, images only for reference.

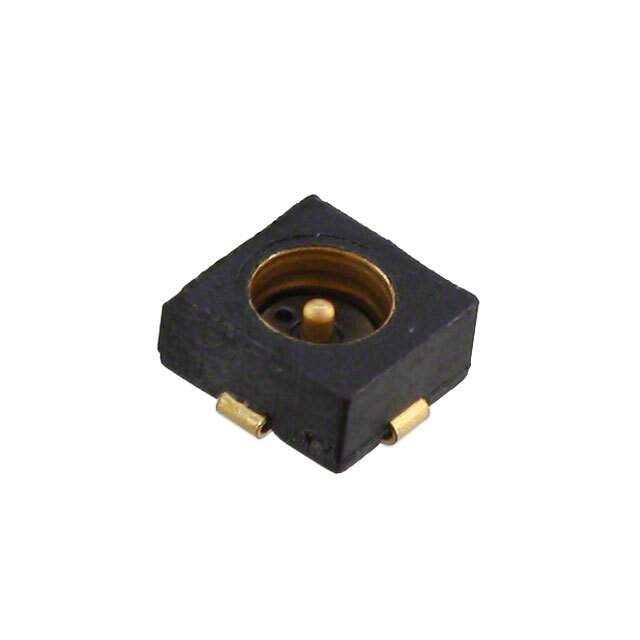

1055688-1 Real Image
Same model may have multiple batches, images only for reference.

1055688-1

Part No 1055688-1
Manufacturer TE Connectivity
Catalog Coaxial Connectors (RF)
Description Conn SSMT 0Hz to 6GHz 50Ohm Solder ST SMD M Gold Over Nickel T/R / CONN OSMT RCPT STR 50 OHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Status Active
Connector Style OSMT
Connector Type Receptacle, Male Pin
Contact Termination Solder, Microstrip
Shield Termination Solder
Impedance 50 Ohm
Mounting SMD (SMT)
Fastening Type Snap-On
Maximum Input Frequency 6GHz
Center Contact Plating Gold
Dielectric Material Polyphenylene Sulfide (PPS)
Temperature Range - Operating -40°C to 125°C
Center Contact Material Copper Alloy
Mating Cycles 100
Win Source Part Number 1000849-1055688-1
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in RF Communications, Industrial
Family Name 1055688
Introduction Date January 01, 2000
ECCN EAR99
Country of Origin United States of America
Halogen Free Not Compliant
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian 1055688-1 CAD Model

Description

The 1055688-1 is a surface mount RF connector manufactured by TE Connectivity AMP Connectors.

  • Fastening Type: Snap-On
  • Contact Termination: Solder
  • Impedance: 50-Ohm
  • Applications: RF Communications and Industrial Applications
  • Popularity: High
  • Supply and Demand Status: Balanced
