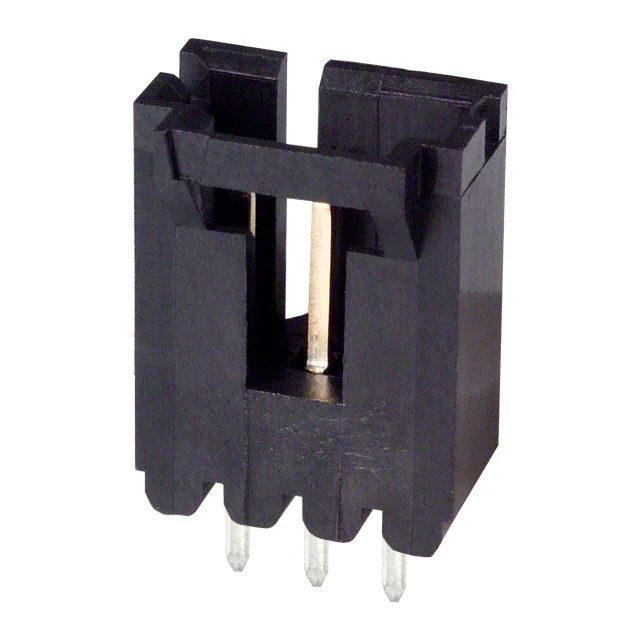

Same model may have multiple batches, images only for reference.

103638-2

Name: 103638-2
Brand: TE Connectivity
SKU: 1355142
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	103638-2
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 3POS 2.54MM / Connector Header Through Hole 3 position 0.100" (2.54mm)
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	TE Connectivity AMP Connectors
Series	AMPMODU MTE
Package	Tube
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	3
Number of Rows	1
Row Spacing - Mating	-
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Mating	0.230" (5.84mm)
Contact Length - Post	0.130" (3.30mm)
Overall Contact Length	-
Insulation Height	0.535" (13.60mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	15.0µin (0.38µm)
Contact Finish - Post	Tin-Lead
Contact Material	Brass
Insulation Material	Thermoplastic
Features	Keying Slot
Ingress Protection	-
Material Flammability Rating	-
Insulation Color	Black
Current Rating (Amps)	-
Voltage Rating	-
Mated Stacking Heights	-
Contact Finish Thickness - Post	100.0µin (2.54µm)
Applications	Automotive, General Purpose, Medical, Telecommunications
Base Product Number	103638
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1355142-103638-2
Ultra Librarian 3D Model	Ultra Librarian 103638-2 CAD Model

Description

The 103638-2 is a rectangular connector header from TE Connectivity AMP Connectors.

Series: AMPMODU MTE
Package: Tube
Mounting: Through-hole
Connection Type: Board-to-board or cable connections
Pitch: 0.100" (2.54mm)
Positions: 3
Rows: 1
Applications: Automotive, general-purpose, medical, and telecommunications
Contact Finish: Gold
Contact Finish Thickness: 15.0μin (0.38μm)
Insulation Height: 0.535" (13.60mm)
Contact Shape: Square
REACH: Affected
ECCN: EAR99
