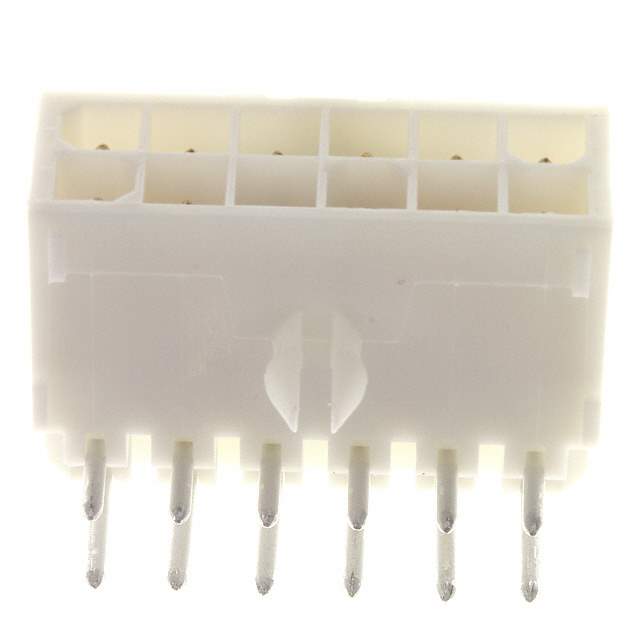

1-770972-1 Real Image
Same model may have multiple batches, images only for reference.

1-770972-1

Part No 1-770972-1
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER R/A 12POS 4.14MM / Connector Header Through Hole, Right Angle 12 position 0.163" (4.14mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.163" (4.14mm)
Number of Positions 12
Number of Rows 2
Row Spacing - Mating 0.163" (4.14mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.145" (3.68mm)
Insulation Height 0.386" (9.80mm)
Contact Shape Circular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features Board Lock
Temperature Range - Operating -20°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color White
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 600VAC
Contact Finish Thickness - Post 150.0µin (3.81µm)
Applications General Purpose
Base Product Number 770972
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number -1-770972-1-SI,17709721,A32481,2266-1-770972-1
Standard Package 100
Win Source Part Number 1334265-1-770972-1
Ultra Librarian 3D Model Ultra Librarian 1-770972-1 CAD Model

Description

The TE Connectivity AMP Connectors 1334265-1-770972-1 is a rectangular connector header with male pins.

  • Packaging Type: Bulk
  • Standard Package: 100
  • Positions: 12
  • Board Lock: Yes
  • Connector Type: Header
  • Contact Type: Male pin
  • Voltage Rating: 600VAC
  • Temperature Range: -20°C to 105°C
  • ROHS3 Compliant: Yes
  • HTSUS: 8536.69.4040
